Tutorial 1 - Author and Validate a Tool

Time 8 min · Difficulty ★☆☆ · Surfaces Tool Studio, MCP Server

!!! abstract “Goal” Take a built-in example tool (getWeather), run its local test, and verify it shows up on the built-in MCP server. This is the canonical no-pass-no-run flow: every tool earns its Local Pass before going live.

What Tool Studio is for

Tool Studio wraps an HTTP API - or any small piece of JavaScript - into an MCP-callable tool. The runtime is GraalVM Polyglot JavaScript inside the JVM with a deny-first sandbox: raw network, file, native, and thread access are all blocked at the Java level. Tools reach the outside world through built-in helpers - fetch (with a 4-layer SSRF guard), safety.fs (rooted at a configurable base path), and safety.parser.{html,yaml,csv,xml} - which is enough for REST API wrappers and small computations, which is most of what a model needs.

The bundled catalog ships 88 default tools. The Starter 5 preset is exposed through the built-in MCP server out of the box - that’s what this tutorial picks from:

Tool Pattern
getCurrentTime Pure computation with an optional parameter
getWeather External REST call through fetch, normalized JSON output
searchWikipedia REST call with no API key required
extractPageContent fetch + safety.parser.html to extract clean main text
evalExpression Pure expression evaluator, no network

Other presets (Dev Essentials, Korea Toolkit (free), File Toolkit, Everything, Custom), chosen at setup in the desktop launcher (or via CLI / yaml), unlock more of the catalog when you need it.

Steps

  1. Open Tool Studio and click getWeather in the left rail. It’s a small REST-API wrapper - exactly the shape Tool Studio is built for.
  2. Review the schema, parameters, and the JavaScript action. Notice the description tells the model when to use it - that’s what the LLM uses for tool selection. The location parameter is Required (the checkbox is on), so its name and Test Value both show a • to mark them mandatory.
  3. Fill in the Test Value for every required parameter. This is not just a form field - the Test Value is the sample input the local sandbox actually executes the tool with. The output of that run is what earns (or fails) the Local Pass, which is what gates publishing the tool to MCP. Garbage values here mean a garbage Local Pass.
  4. Click Test & Publish (the button is labeled Test & Update when the tool was already published once). The local test runs the action with your Test Values. If it passes, the tool earns its Local Pass and is published to the built-in MCP server in the same step - no restart, no redeploy. Save Draft beside it stores the form without running the test.

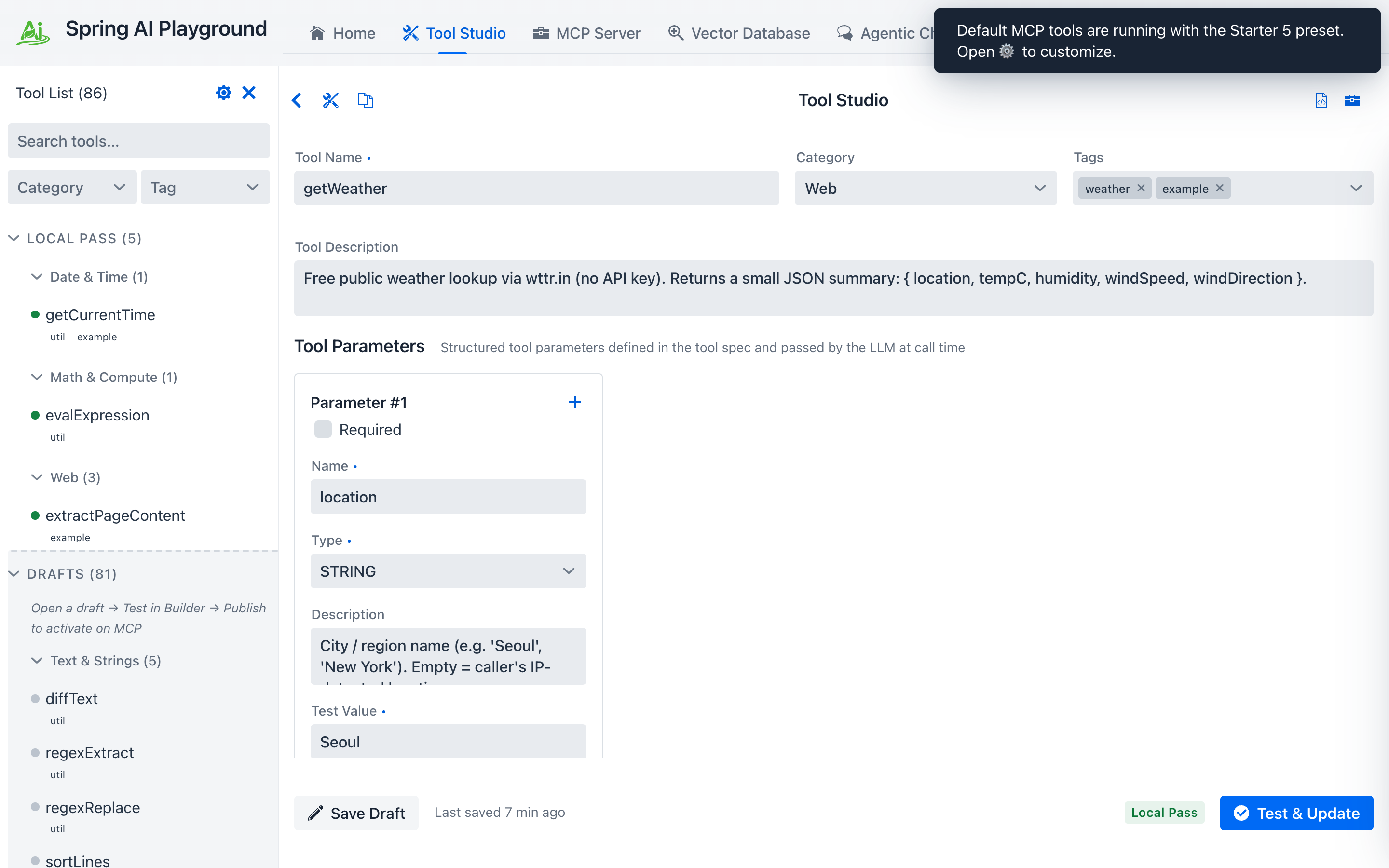

Tool Studio with `getWeather` selected, showing required Test Value ① the Starter 5 built-in tools (the default preset), ② tool name and description (shown to the model for selection), ③ structured parameters with the Required checkbox on, ④ Test Value - required (note the •), the sample input the sandbox runs with to earn the Local Pass, ⑤ Test & Publish / Test & Update runs the test then publishes if it passes - until it does, the tool sits in the Drafts section and is not exposed through MCP.

!!! warning “No Test Value, no Local Pass, no MCP” A tool with empty Test Values for required parameters cannot run locally - and a tool that cannot run locally never reaches the MCP server. Pick a representative sample (e.g. seoul for getWeather) that exercises the same code path the model will hit in production.

After the test passes, you’ll see a confirmation banner. Tool name and description match the entry in MCP from this point on.

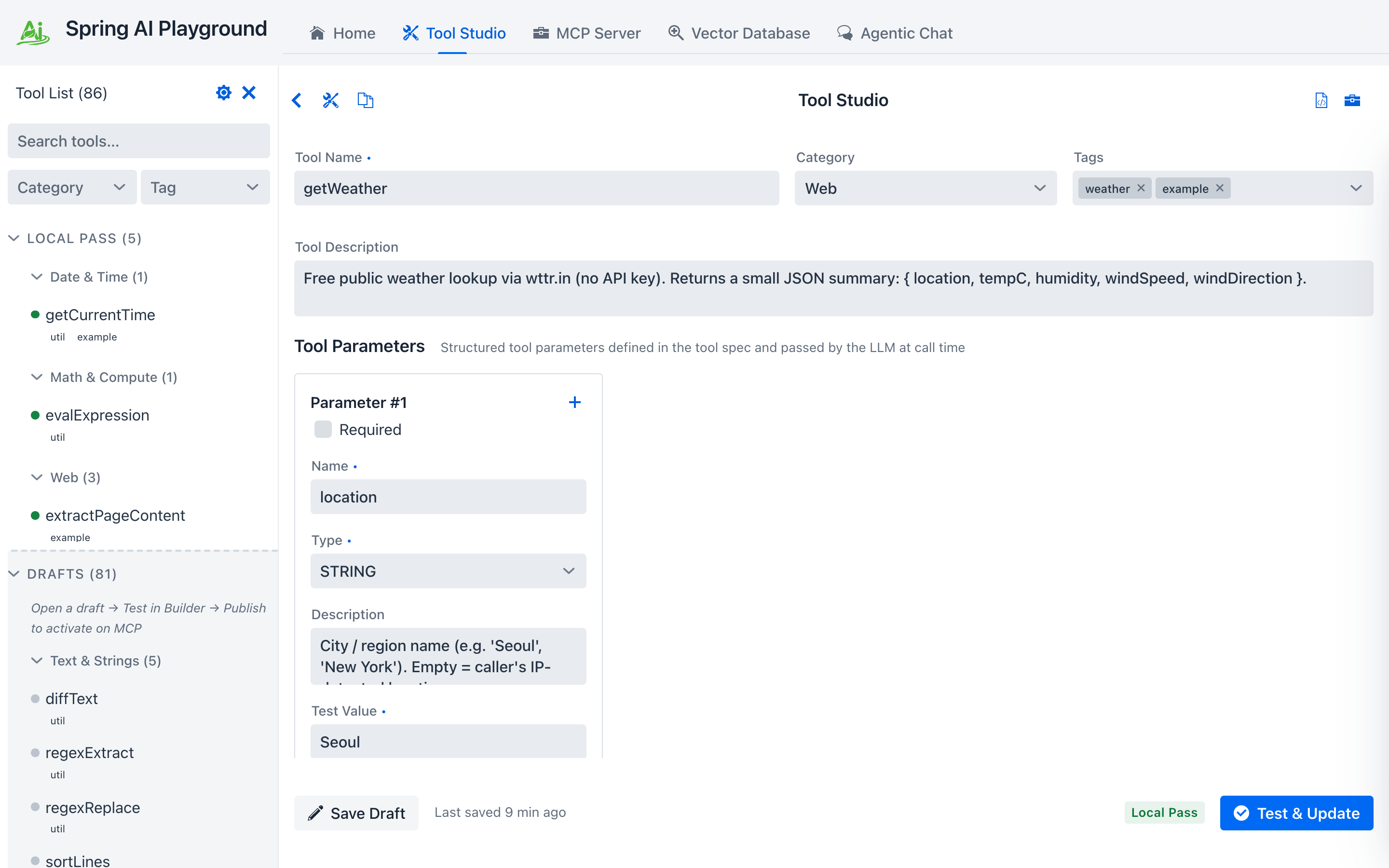

Test passed and the tool is registered The Local Pass is what gates publication. Tools that haven’t earned it never reach an MCP client.

  1. Switch to MCP Server. The built-in connection spring-ai-playground-built-in-mcp is selected by default. Scroll down to the MCP Inspector section to see the tools as any MCP client would.

MCP Inspector listing the built-in tools, with the play button on each row to call through MCP ① the Call Tool play icon (here on the getCurrentTime row, the same tool Tutorial 4 will call from chat) runs the tool through the full MCP transport - not just the local sandbox. Your getWeather from step 4 lives in the same list; scroll the inspector to find it.

!!! tip “Why this matters” Validating a tool through MCP (not just via Tool Studio’s local test) catches schema mismatches and serialization issues that would otherwise only show up the first time a model invokes the tool in chat.

!!! warning “Common pitfalls” - Spaces in tool names break MCP. Use camelCase or snake_case. - Don’t hardcode secrets. Use environment-backed static variables (${OPENAI_API_KEY}, ${SLACK_WEBHOOK_URL}, …) so they’re injected at launch time only. - Keep results compact JSON. Long free-text outputs balloon the chat token count and crowd the context window.
