Tutorial 14 - Attach and Analyze Images

Time 8 min · Difficulty ★☆☆ · Surfaces Agentic Chat

!!! abstract “Goal” Hand the model pictures and ask about them. You attach images with the picture button (or drag-drop, or paste), send a question, and a vision-capable model answers from the actual pixels - resized and EXIF-tagged in your browser, stored content-addressed on your machine, never sent to a third party. Then you go past the pixels: with the Image analyst preset the agent reads each photo’s stored EXIF, tabulates capture time, camera, and GPS with renderTable, and plots where the shots were taken on a plotPointsOnMap card. Finally you re-summon an image in a later turn with the describeImage tool.

Before you start

Pick a model that can actually see. On Ollama that means a standard GGUF vision model such as qwen3.5:4b (the shipped default) or gemma3 - not an -mlx variant, which advertises vision without shipping vision tensors (the playground warns you if you try). On Apple Silicon the model list keeps the standard GGUF builds alongside the -mlx catalog exactly for this - pick qwen3.5:4b from the list, or type any custom name into the model box. OpenAI GPT-5 family models work out of the box. See Multimodal Vision Input for the capability check details.

Steps

Open Agentic Chat and click the picture icon in the prompt field (or drop image files onto it, or paste a screenshot). Each image appears as a chip above the prompt - attach several at once (up to 5 per message, the chip bar counts them), and remove any with its x button.

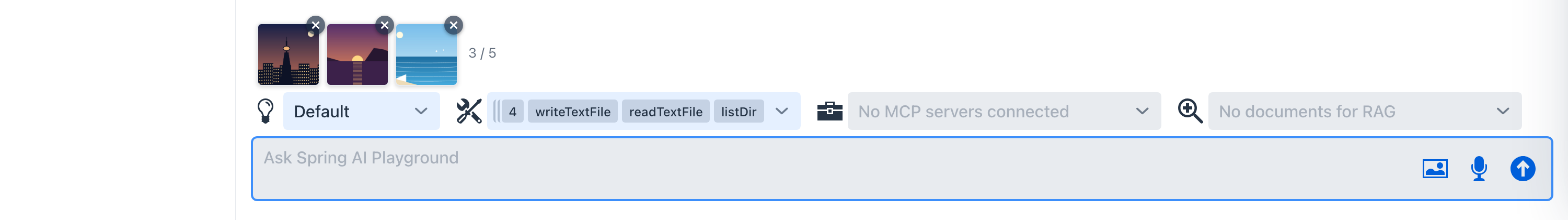

The chat input with three attached photo chips above the prompt field and the 3 / 5 counter The chips are your pre-send staging area - here three vacation photos, counter at 3 / 5. Each image is already optimized (resized to at most 2048px, EXIF captured from the original) and stored locally, but nothing has gone to the model yet.

Type a question about the image - for example What is this image? Read the title text and tell me what the map at the bottom shows. - and send. The image rides along with your message as native multimodal input, and the thumbnail renders inside your message bubble.
The vision model answers from the pixels. With a local Ollama model the first image turn can take a minute or two (the vision projector loads and the image is encoded) - later turns are faster.

The user message with its image thumbnail and the model's answer reading the title and describing the map from the pixels The answer is grounded in the attached image, not a guess - here the model reads the exact title text and identifies what the map plots. The thumbnail stays with the conversation - reopen the chat later and it is restored from the local image store.

Photos carry more than pixels. The EXIF captured at attach time (capture date, camera, GPS) lands in a .json sidecar next to each stored image, and the filesystem tools can read it. Apply the Image analyst preset from the Prompt Library (confirm the Apply preset tools dialog - it exposes listDir, readTextFile, renderTable, and plotPointsOnMap alongside describeImage), attach a few geotagged photos, and ask: Where and when did I take these three photos? Read each photo's EXIF sidecar, show a table with file name, capture time, camera, and GPS coordinates, then plot the three locations on a map.

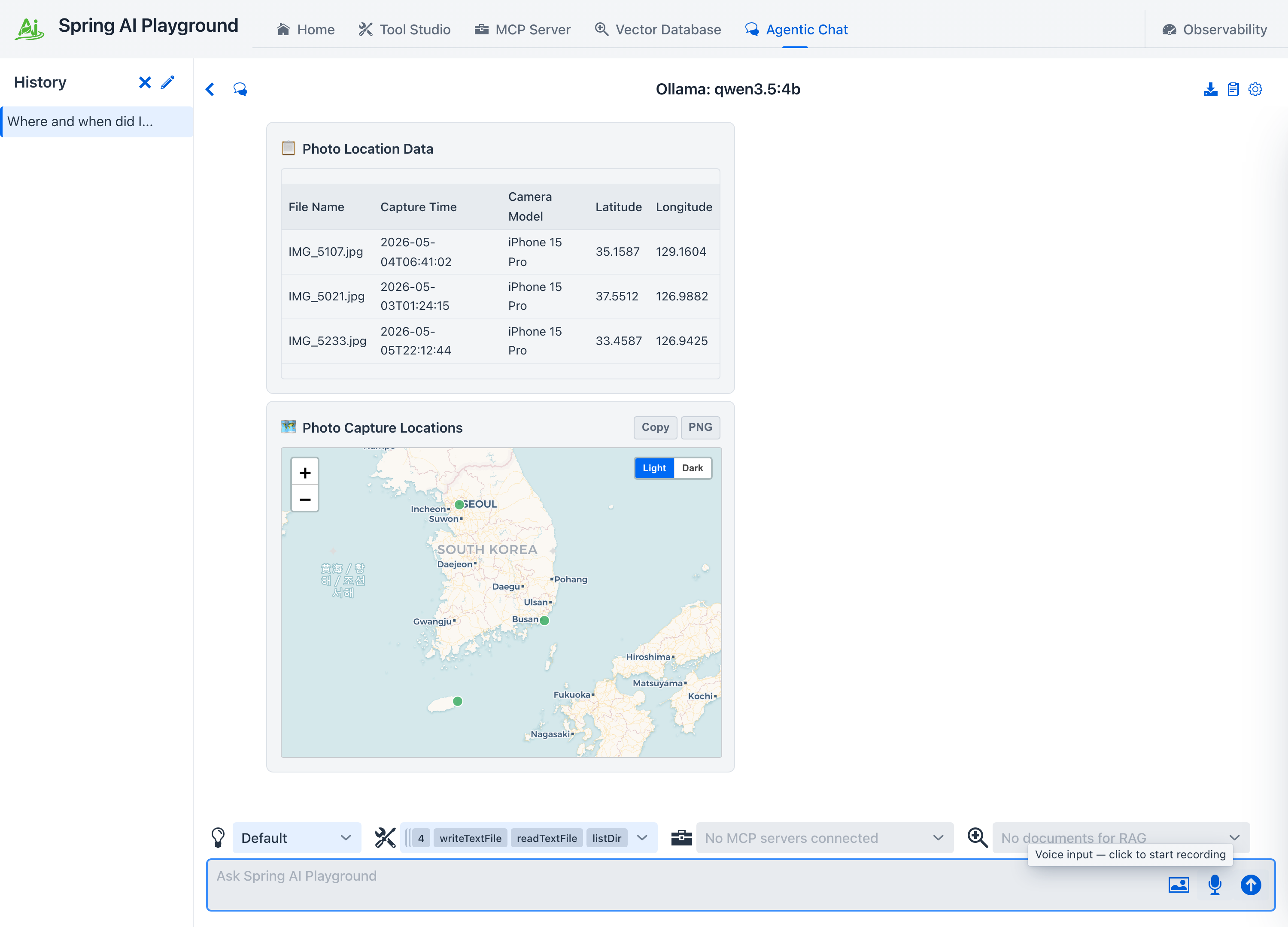

The agent's answer to the EXIF question - a Photo Location Data table with one row per photo and a map card with three markers across Korea The agent lists images/, reads each <hash>.json sidecar with readTextFile, tabulates file, capture time, camera, and GPS per photo with renderTable, then drops one marker per photo with plotPointsOnMap - three shots, three markers. The answer ends in a table and a map you can read at a glance, not a paragraph of coordinates.

Later in the conversation - even after the original turn has scrolled out of the model’s context window - ask about the image again: What was in that image I sent earlier?. If the describeImage tool is exposed to the chat, the model calls it, the chat re-attaches the stored image, and the model answers with the pixels in front of it again.

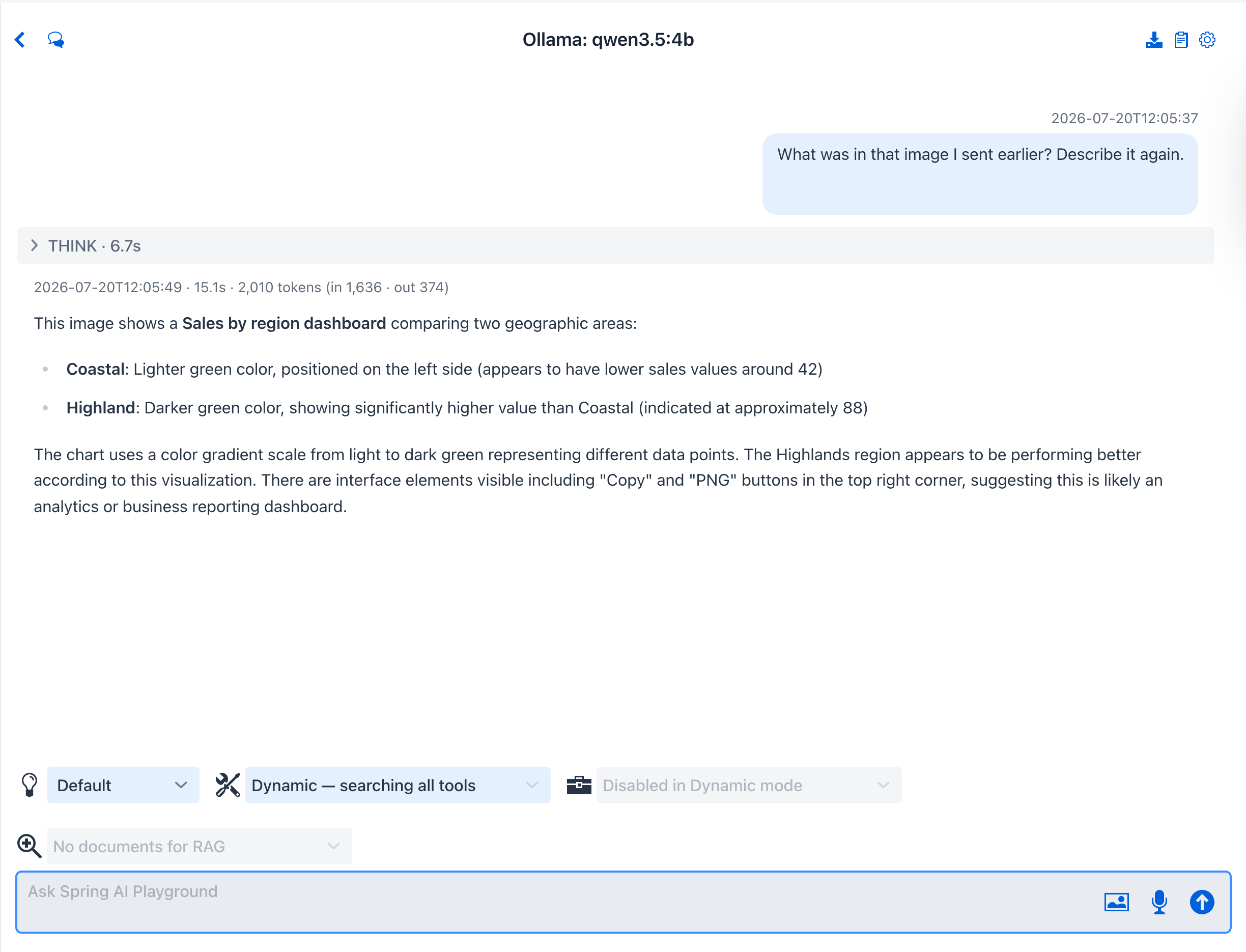

The model calling describeImage and answering about the earlier image One image attached once, referenced any time - describeImage resolves by hash or file name. When several images match, a chooser lists each with a thumbnail and its short hash; when none exist, an upload dialog opens instead.

What to observe

The browser does the heavy lifting before upload: EXIF (including GPS, capture time, camera) is read from the original file, then the image is rotation-corrected and resized to at most 2048px on its longest edge.
Storage is content-addressed and per-conversation: the same image attached twice lands at the same workspace/<conversation>/images/<sha-256> path once. The .json sidecar keeps the original file name, MIME type, and EXIF.
That sidecar makes EXIF queryable data, not just provenance: it sits inside the conversation workspace, so the same filesystem tools that read uploaded files turn camera metadata into renderTable rows and plotPointsOnMap markers - no vision call needed for the where and when.
The vision capability check runs at attach time: a non-vision model (or an mlx false-positive) gets a warning, but you can still send - the provider error is translated into an actionable message if it fails.
Conversation files persist only image references; reopening the chat reloads thumbnails from the local store.

!!! tip “Why this matters” Screenshots, photos of whiteboards, receipts, charts - much of what you want an agent to work with is not text. Native image input plus describeImage re-referencing means one attachment keeps working across the whole conversation without re-uploading or burning context on re-sent pixels. And because EXIF lands as readable workspace data, the Image analyst preset turns a batch of vacation photos into a sortable table and a pin map in one question. The full feature reference is at Agentic Chat → Multimodal Vision Input.
