spring-ai-playground

title: Safety description: MCP risk-model and sandbox safety signals - L0–L5 risk distribution, tool-poisoning hits, content-hash tamper rejects, HITL approval rate, and sandbox guard blocks, all from lifetime counters.

Safety

Purpose - the security view across the MCP risk model and the JS tool sandbox. It rolls up every safety signal the runtime emits - per-call risk levels, tool-description poisoning scans, content-hash tamper detection, human-in-the-loop approvals, and sandbox guard rejections - into one dashboard, so an operator can answer “is the agent being fed anything dangerous, and did the guards catch it?” at a glance.

When to look here

• “How risky is the tool surface the agent can reach?” - Risk level distribution (L0–L5).
• “Did an upstream tool quietly change its definition?” - Tamper rejects KPI (content-hash ledger, TOFU).
• “Is any tool description trying to inject instructions?” - Poisoning hits KPI + the risk-event timeline.
• “Are humans actually approving the gated calls?” - HITL approval rate.
• “Is the sandbox blocking unsafe actions?” - Sandbox guard blocks (SSRF / filesystem policy).

Data source

Two streams, both lifetime (not windowed):

• Counters via SystemMetricsSnapshot - saip.risk.signal (grouped by signal type), saip.tool.risk (grouped by composed level L0–L5), mcp.hitl.decision (grouped by outcome), and sandbox.guard.blocked (grouped by reason). The saip.* counters are emitted by McpRiskSignalLogger (the risk-signal sink) and McpToolObservationFilter.
• Event timeline via McpRiskEventRingBuffer - the most recent risk events (server/tool risk computed, floor override, hash mismatch, composition lifecycle, poisoning hit) with their type and summary.

See MCP Server Safety for the risk model these signals come from.

Controls

Shares the Observability global settings, but the KPI cards and bar charts are lifetime counters - the time-window preset does not scope them. Only the Recent risk events timeline reflects recency (most recent 50).

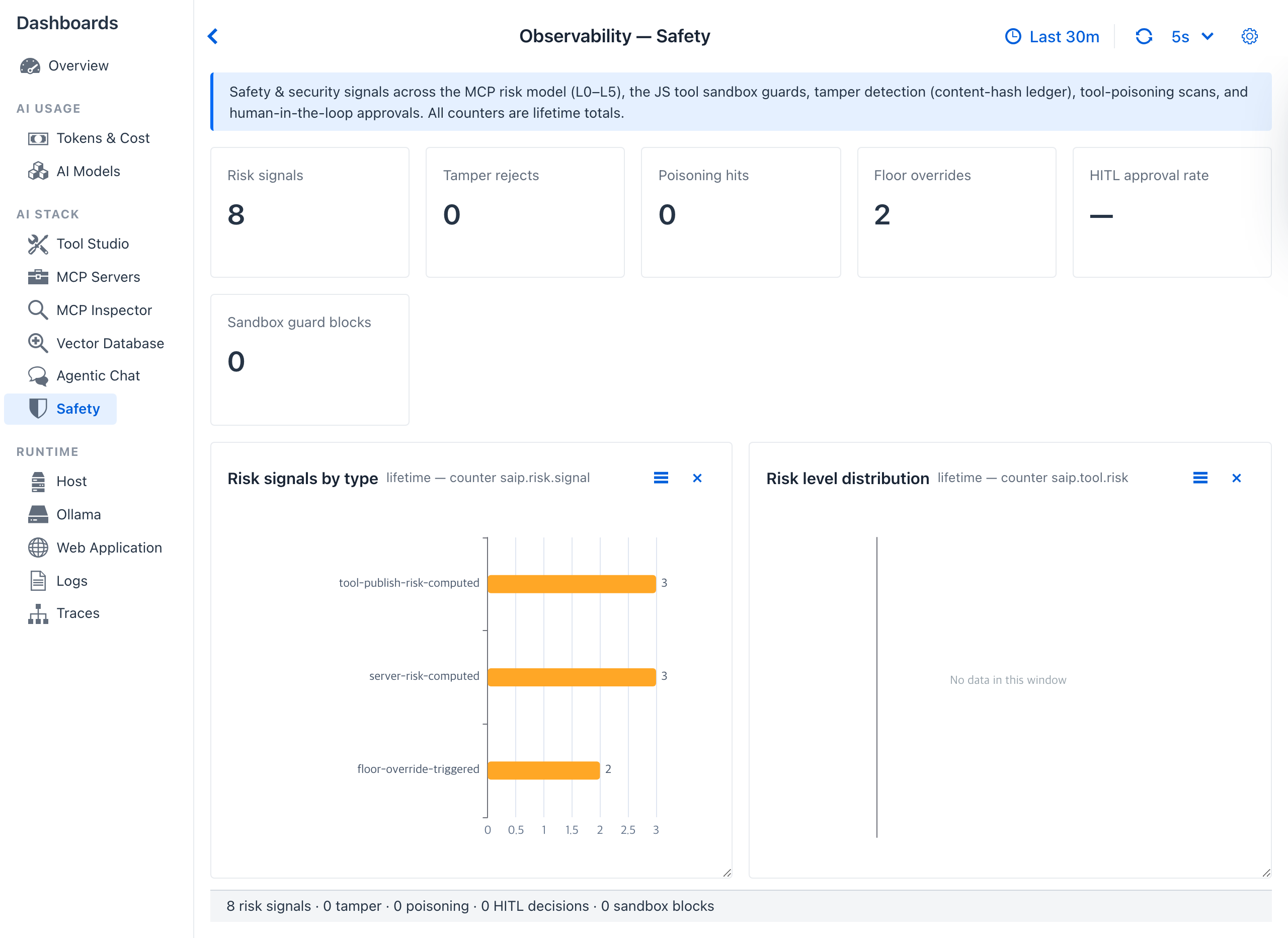

KPI cards (six)

Card	Shows	Source
Risk signals	Σ all saip.risk.signal events (lifetime)	saip.risk.signal counter
Tamper rejects	hash-ledger-mismatch - a default/exposed tool’s content hash changed since first seen (TOFU)	saip.risk.signal{type=hash-ledger-mismatch}
Poisoning hits	poisoning-hit - a tool description/schema matched a prompt-injection pattern	saip.risk.signal{type=poisoning-hit}
Floor overrides	floor-override-triggered - a risk floor rule forced a higher level	saip.risk.signal{type=floor-override-triggered}
HITL approval rate	% approved of all human-in-the-loop decisions	mcp.hitl.decision counter
Sandbox guard blocks	Σ sandbox.guard.blocked (SSRF + filesystem policy rejections)	sandbox.guard.blocked counter

Charts (four)

Chart	Type	Reading
Risk signals by type	Horizontal bar	saip.risk.signal grouped by type - server-risk-computed, tool-publish-risk-computed, floor-override-triggered, hash-ledger-mismatch, composition-lifecycle, poisoning-hit
Risk level distribution	Horizontal bar, L0→L5 in order	Final composed risk level of each executed MCP tool call (saip.tool.risk). L0 verified · L1 safe · L2 low · L3 moderate · L4 high · L5 critical
HITL decisions	Horizontal bar	mcp.hitl.decision outcomes (chat-side + MCP-server-side): approved / declined / denied / elicit-failed
Sandbox guard blocks	Horizontal bar	sandbox.guard.blocked by reason: host-not-in-allowlist, private-ip, too-many-redirects, body-too-large, …

Tables

Recent risk events - a scrollable timeline of the latest events from McpRiskEventRingBuffer, each row showing time, a type badge (warn-tinted for failures), and a one-line summary. Populated as MCP servers and tools are registered, exposed, composed, or fail an integrity/poisoning check.

Cross-references

• MCP Server Safety - the L0–L5 risk model, content-hash ledger, and poisoning scanner this dashboard surfaces
• Safety Architecture - the JS sandbox layers behind the Sandbox guard blocks counter
• Human-in-the-Loop - the approval gate behind the mcp.hitl.decision counter
• Tool Studio - sibling AI Stack tab for in-process tool execution
• Observability Architecture - the counter / metrics pipeline
