spring-ai-playground

description: Tool Studio - low-code JavaScript tool authoring with deny-first sandbox, Draft state, built-in MCP exposure control, per-tool capability overrides.

Tool Studio

Where: top navigation → Tool Studio.

Tool Studio is the low-code authoring environment for JavaScript-based tools. It is the part of the product that turns the Playground from a read-only testing interface into an executable tool runtime.

A tool you author in Tool Studio is a small JavaScript action plus a structured spec - name, description, parameters, optional static variables, and a sandbox capability profile. Tool Studio compiles that into an MCP-callable tool, runs it once locally against your declared test values to earn a Local Pass, and only then publishes it to the built-in MCP server.

The authoring screen has two working halves that fold into a single page:

  1. Tool spec form at the top - name, description, parameters.
  2. Tool Action below it - JavaScript code editor, test run controls, and the collapsible Sandbox & Capabilities pane that controls how the tool’s runtime differs from the default.

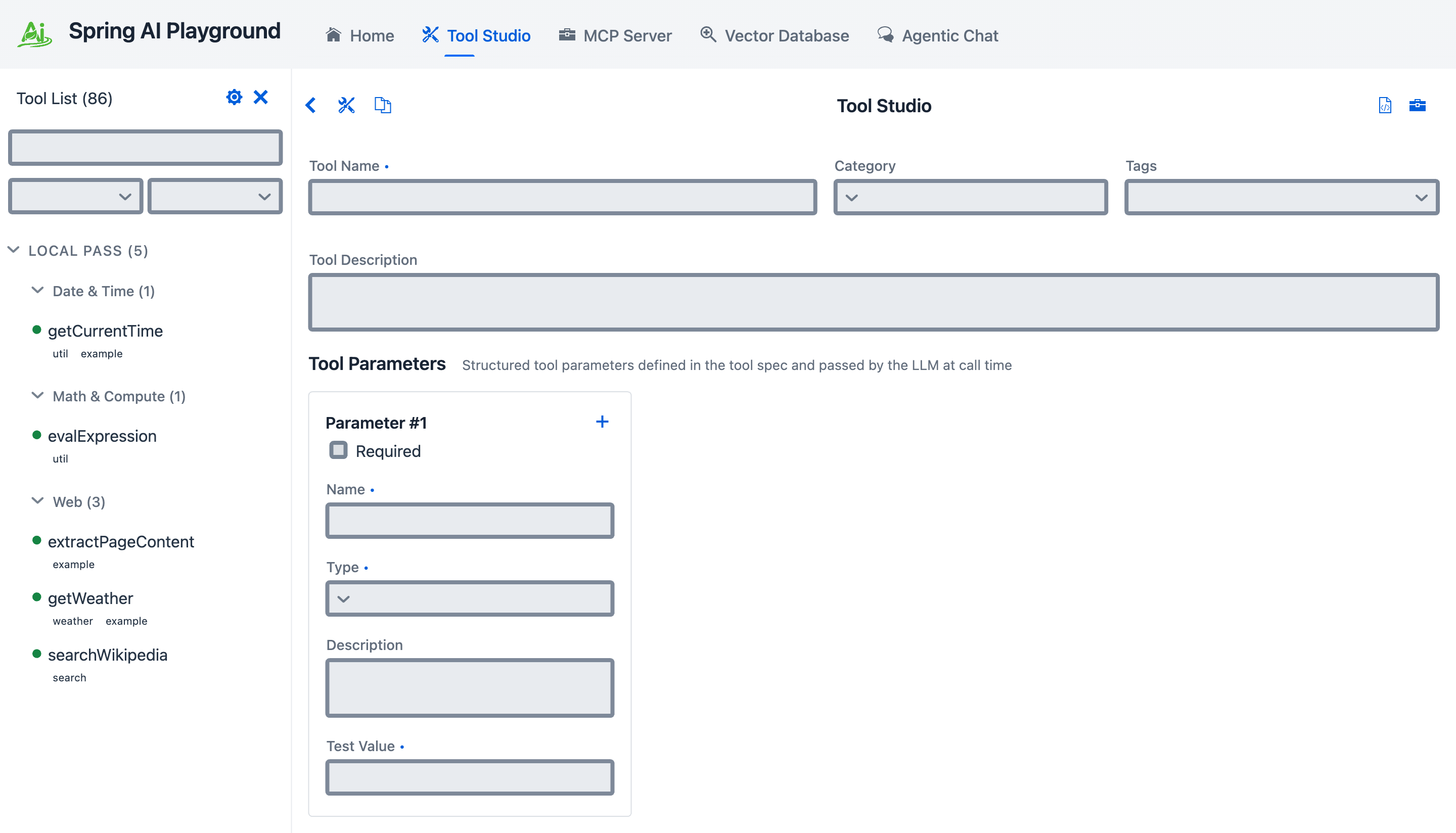

Tool spec form - tool name, description, structured parameters Top of Tool Studio: tool name / category / tags, free-form tool description, and structured parameters (Parameter #1 with required flag, name, type, description, and a test value the local sandbox actually executes against).

What Tool Studio Does

Tool Studio lets you:

Local Pass - Test Before Publish

Spring AI Playground treats the local test-run as a gate, not a polish step. This is the rule surfaced on the Home screen as No pass, no run.

In practice this means the act of publishing is the act of testing. You never produce a tool whose first execution happens in front of an agent.

Every one of the 88 bundled Default Tools crossed this same gate before being shipped - they live as ready-to-fork reference for the workflow above.

Built-in MCP Server

Tool Studio is tightly integrated with the built-in MCP server.

When you publish a tool from Tool Studio, it becomes available through that MCP endpoint immediately.

Tool Action - JavaScript code editor

The lower half of the authoring page is the Tool Action area: the JavaScript code that actually runs when the tool is invoked, plus the controls and panels that surround it.

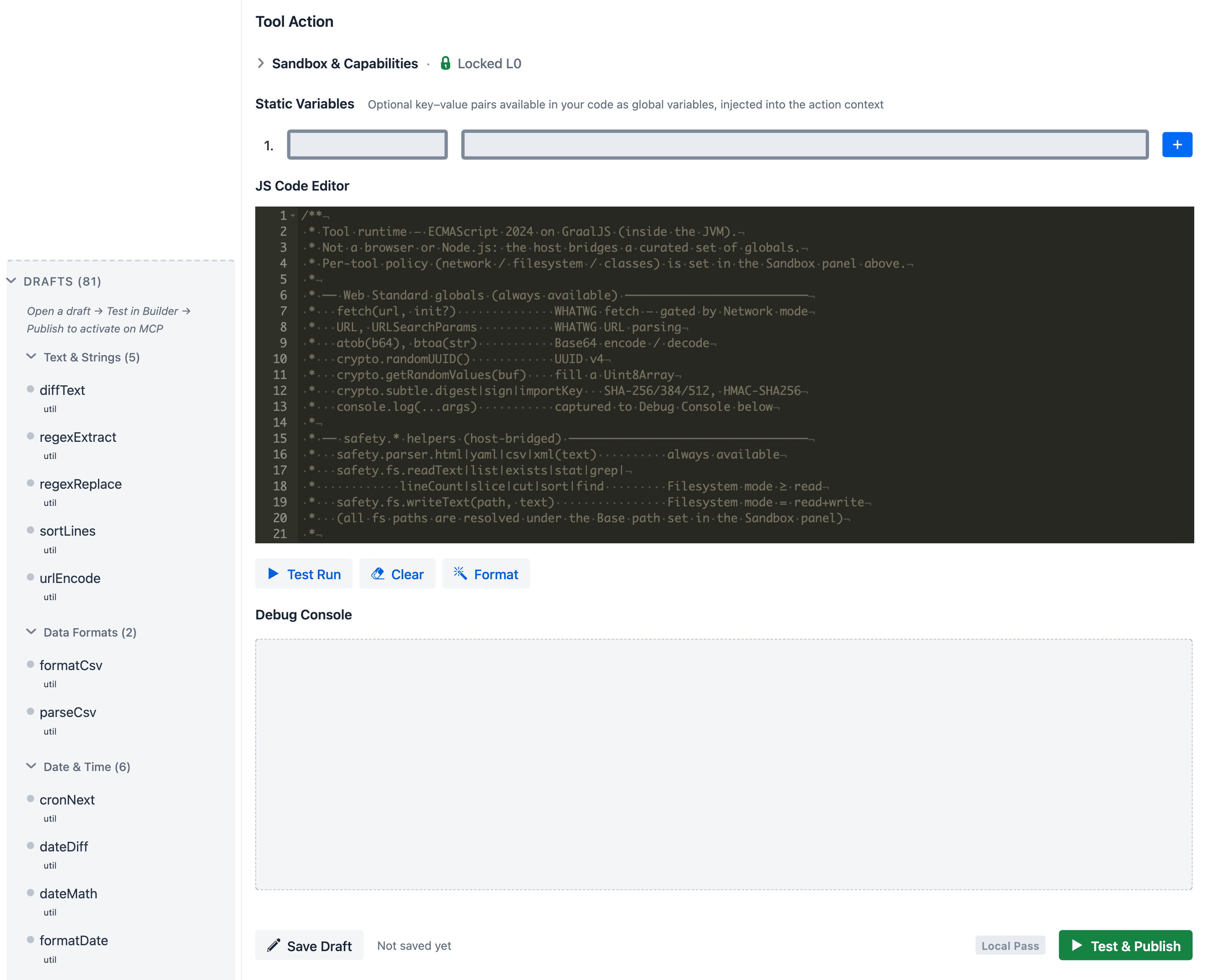

Tool Action - Sandbox collapsed, JS Code Editor with helper-rich sample Tool Action area top-to-bottom: Sandbox & Capabilities stays collapsed by default with a Locked L0 badge so authoring focuses on the JS action itself; Static Variables sit just above the code, available to the action as globals and masked from logs if env-backed; the JS Code Editor ships with a sample that lists the cross-bridged globals (fetch, URL, URLSearchParams, atob/btoa, crypto, the safety.* helpers) so the author has a working reference without leaving the page; Test Run / Clear / Format drive execution; Debug Console captures console.log output with env-var masking; the bottom action bar - Save Draft / Local Pass badge / Test & Publish - closes the loop. The only way to expose a tool through MCP is to make its sandboxed test run pass.

JavaScript Runtime

Tool actions run as JavaScript through GraalVM Polyglot inside the JVM, on a virtual-thread-per-task executor so a runaway tool can be hard-killed on timeout without leaking platform threads.

Runtime characteristics:

Source of truth: JsToolExecutor, JsRuntimeGlobals.

Cross-platform by design

The JS-on-JVM design is what lets every tool in this app - both the bundled defaults and anything you author here - work the same on macOS, Windows, and Linux without per-OS packaging or native toolchains. This is the main split from typical MCP server tools, which ship one native binary per platform and need a build environment on the user’s machine.

Concretely:

A pure-runtime caveat: a tool whose JS hard-codes platform-specific paths or external services (/etc/..., C:\Program Files\..., OS-only binaries) is still platform-coupled at the user-data level. The runtime is OS-agnostic; whether a specific tool you author is portable depends on what it does.

Built-in JavaScript Helpers

Tools call a small set of capability-scoped helpers instead of raw Java. These are the same helpers the bundled default tools use, so authoring a new tool typically does not require any Java.type(...) interop at all.

Helper What it does
fetch(url, init?) HTTPS/HTTP request with the SSRF four-layer guard. 5 redirect cap, 10 MB body cap, 30 s request timeout, 5 s connect timeout. Restricted hop-by-hop headers (Host, Connection, Content-Length, Expect, Upgrade) are stripped before sending. 303 redirects downgrade POST → GET. init accepts method, headers, body plus maxLength / startIndex for response pagination. Returns {status, ok, statusText, url, contentType, truncated, nextStartIndex, headers: {get(name)}, text(), json(), arrayBuffer()}. Only installed when the effective egress level is not blocked.
URL, URLSearchParams WHATWG URL parsing / building.
atob, btoa Base64 encode / decode of strings.
crypto.subtle digest (SHA-256 / SHA-384 / SHA-512 only), importKey + sign / verify for HMAC, and getRandomValues - backed by JCE.
crypto.randomUUID() UUID v4.
safety.fs readText, writeText (auto-creates parent directories), list, stat, exists, grep, lineCount, slice, cut, sort, find (depth-limited walk, does not follow symlinks), plus workspace() / readRoots() that report the boundaries. A relative path resolves under the working directory; reads are allowed anywhere under a readable root (the home directory by default), while writes are confined to the working directory. Per-tool override fsBasePath confines that one tool to a single base instead.
safety.parser.html jsoup-backed cleaner. Returns a org.jsoup.nodes.Document host object - methods are callable from JS, but the class itself is not in the allow-list, so user code cannot construct new jsoup instances via Java.type(...).
safety.parser.xml XXE-hardened DOM parser: disallow-doctype-decl=true, external general + parameter entities disabled, XIncludeAware=false, expandEntityReferences=false. Returns a plain {tag, attrs, text, children} proxy tree - no host nodes leak.
safety.parser.yaml SnakeYAML Yaml().load(). Caveat: this is the regular constructor (not SafeConstructor), so YAML tags such as !!class.name will trigger class instantiation during load. Treat YAML input as trusted-source-only; do not parse user-supplied YAML with this helper.
safety.parser.csv Apache Commons CSV - optional header and delimiter opts.
console.log Captured into the Tool Studio debug pane and into the chat’s tool-call trace. Environment-backed static variables are masked by substring replacement when their full resolved value appears in output. Only anchored full-string $ENV_VAR references are auto-collected as secrets - substring-inlined env vars are not. Log entries are capped at 1000 per execution. console.error is not installed in the current build.

Every helper above is exercised by one or more of the 88 Default Tools - open one in Tool Studio to see the helper in working code, then use Copy And New Tool to fork it.

Sandbox & Capabilities

Sandbox & Capabilities is the collapsible pane inside Tool Action that controls how a tool’s effective runtime policy differs from the global default. Every tool starts at the baseline - no network, no filesystem, deny-first class allowlist - and earns an L0 badge. Opening this pane lets you widen specific dimensions per tool, and the Risk Level badge updates live as you do so.

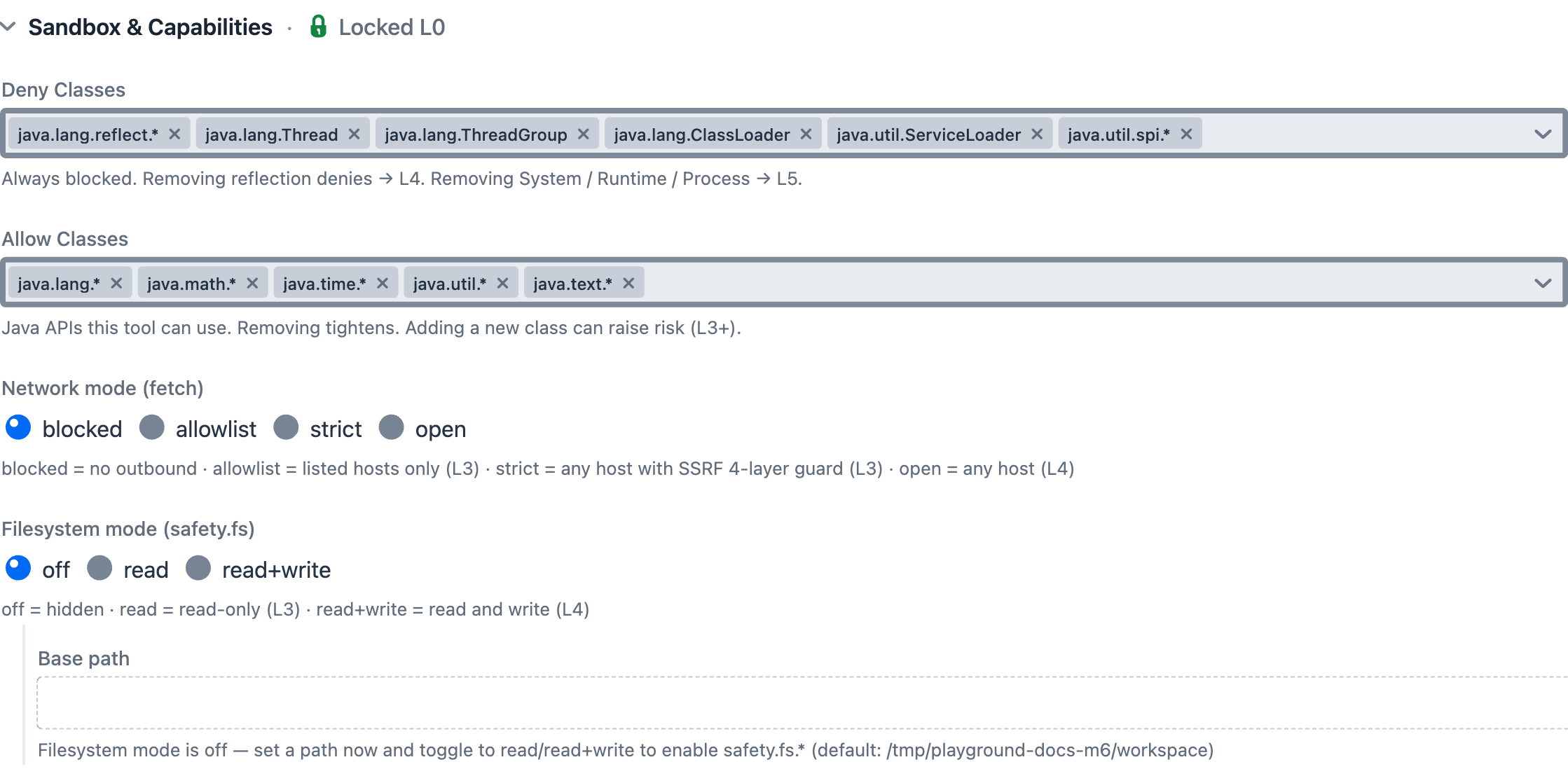

Sandbox & Capabilities pane - expanded Sandbox & Capabilities expanded: Deny Classes chips list packages user JS can never touch (removing chips lowers safety - removing reflection denies → L4, removing System / Runtime / Process → L5); Allow Classes chips list packages user JS can use (adding new chips can raise risk to L3+); Network mode radio chooses blocked / allowlist / strict (default, with SSRF four-layer guard) / open; Filesystem mode chooses off (hidden) / read (L3) / read+write (L4) / readwrite; Base path sets the per-tool safety.fs root, default ${TOOL_STUDIO_FS_BASE:${user.home}/spring-ai-playground/workspace}.

The Sandbox & Capabilities pane reads and writes a SandboxOverrides block on the tool’s spec. None of the bundled defaults touch the class lists - they only set network mode and host list - but the full surface is available. The five subsections below document the baseline, the override shape, and the per-control semantics in detail. For the normative JSON contract of the spec this pane writes - every field, JSON Schema, resolution algorithm, and Risk Level rules - see Safe Tool Specification 1.0.

Default sandbox baseline (application.yaml)

The Sandbox & Capabilities pane modifies a global baseline defined in application.yaml. The defaults are deliberately restrictive: no I/O of any kind, only pure-compute Java packages reachable through Java.type(...), and an explicit deny-list that beats any allow match.

spring:
  ai:
    playground:
      tool-studio:
        timeout-seconds: 30
        fs:
          base-path: ${TOOL_STUDIO_FS_BASE:${user.home}/spring-ai-playground/workspace}
        js-sandbox:
          allow-network-io: false
          allow-file-io: false           # single boolean - flips read and write together
          allow-native-access: false
          allow-create-thread: false
          max-statements: 500000
          deny-classes:                  # evaluated before allow-classes - deny ALWAYS wins
            - java.lang.System
            - java.lang.Runtime
            - java.lang.ProcessBuilder
            - java.lang.Process
            - java.lang.Class
            - java.lang.invoke.*
            - java.lang.reflect.*
            - java.lang.Thread
            - java.lang.ThreadGroup
            - java.lang.ClassLoader
            - java.util.ServiceLoader
            - java.util.spi.*
          allow-classes:                 # pure-compute only
            - java.lang.*
            - java.math.*
            - java.time.*
            - java.util.*
            - java.text.*

Pattern semantics for deny-classes / allow-classes: an entry is either the exact class name (java.lang.Class) or a package prefix ending in .* (java.lang.reflect.* matches java.lang.reflect.Method but not bare java.lang.reflect). Deny is evaluated first; if a class matches both lists, the deny wins.

A tool that legitimately needs raw Java network/filesystem access or relaxed network egress opts in per tool via Sandbox Capabilities - the per-tool override surface documented in the next subsection. If you need an even stricter deployment than this baseline, GraalVM sandbox policies can be layered on top in a custom source build; see the GraalVM Security Guide.

SandboxOverrides JSON shape

SandboxOverrides is the per-tool block that the Sandbox & Capabilities pane edits and the resolver applies. None of the bundled defaults touch the class lists - they only set network mode and host list - but the full shape is:

{
  "addAllowClasses": ["java.net.URL"],
  "removeAllowClasses": [],
  "addDenyClasses": [],
  "removeDenyClasses": [],
  "networkMode": "strict | allowlist | open | blocked",
  "hostsAllow": ["api.example.com", "*.example.com"],
  "fileRead": true,
  "fileWrite": null,
  "fsBasePath": null
}

Egress modes (network)

The Tool Studio override form exposes four user-facing modes. A fifth (permissive, alias for open) and a sixth (custom, deny-list-based) exist inside SafeHttpFetch.enforce; custom is currently only filled in from yaml profiles, not from the per-tool form.

Mode What it does SSRF guard
blocked fetch is not installed at all - calling it from JS throws ReferenceError. n/a
strict (default) Public hosts only. Both the literal host and every DNS-resolved address must not be private/reserved. ✅ runs
allowlist Host must match an entry in hostsAllow (exact match or *.suffix). not run
open (= permissive) No host check. Use only when the tool genuinely needs open egress. not run
custom (internal) Allowed unless the host matches hostsDeny. Reachable from yaml profiles only. not run

All modes enforce the rest of the contract: scheme is http or https, body cap 10 MB, redirect cap 5, request timeout 30 s, connect timeout 5 s, restricted hop-by-hop headers stripped, 303 POST→GET downgrade.

Filesystem mode

The Filesystem radio chooses how safety.fs behaves for the tool. The baseline is off (no read, no write); per-tool overrides widen the surface.

Mode fileRead fileWrite Risk impact
off (default) false false Hidden - safety.fs calls reject with policy error.
read true false L3 - tool can readText / list / stat / find anywhere under a readable root.
read+write true true L4 - tool can also writeText, which auto-creates parent directories.
readwrite true true L4 (same posture as read+write; alternate label).

Two boundaries govern access. The working directory (${TOOL_STUDIO_FS_BASE:${user.home}/spring-ai-playground/workspace}, set per-app under tool-studio.fs.base-path) is the only writable location and the base that relative paths resolve against. One or more readable roots - the user’s home directory by default - bound what reads can reach: SafeFs.resolveRead accepts a path only if it sits under a readable root, while SafeFs.resolveWrite accepts it only if it sits under the working directory. Both resolve symbolic links (toRealPath) before the boundary check, so a link whose real target escapes the boundary is rejected even when its lexical path looks contained; writes additionally refuse a symlink target outright. So an absolute path under your home reads fine, but ../../etc/passwd (outside every root) and any write outside the working directory are rejected. safety.fs.find walks without following symbolic links, so a link inside a readable root cannot be used to traverse out of it. Call listAllowedDirectories to see the live roots and working directory.

SSRF four-layer guard

Active only when egress is strict. From SafeHttpFetch.enforce and enforceSsrfFourLayer, in order:

  1. Scheme check - only http and https accepted. Anything else rejected as unsupported-scheme.
  2. Egress switch - based on the resolved mode. Only strict continues to the next layers.
  3. Literal IP vs DNS branch - if the host parses as a literal IPv4/IPv6 address, check that address directly. Otherwise resolve via DNS (InetAddress.getAllByName) and check every returned address. DNS failure or empty resolution both block - fail-closed.
  4. Private/reserved address check - rejects:
    • loopback (127.0.0.0/8, ::1)
    • link-local (169.254.0.0/16, fe80::/10)
    • site-local (RFC 1918: 10.0.0.0/8, 172.16.0.0/12, 192.168.0.0/16)
    • any-local (0.0.0.0, ::)
    • multicast (224.0.0.0/4, ff00::/8)
    • IPv6 ULA (fc00::/7)
    • CGNAT (100.64.0.0/10) - explicitly handled because Java’s isSiteLocalAddress() does not cover this range

Risk Level Reference

Computed by SandboxPostureCalculator.compute from the tool’s effective policy. The badge is the max of all signals below. Only L0/L3/L4/L5 are produced by the current calculator (L1 and L2 exist as labels in the UI but no rule yields them today).

Signal Threshold Level
Default posture (no overrides) - L0
networkMode = allowlist with concrete hosts non-* allow-list L3
networkMode = allowlist containing * wildcard everything L4
networkMode = open any host L4
fileRead = true (write false) file read only L3
fileWrite = true write capability L4
Removed deny entry - non-critical 1-2 entries dropped L3
Removed deny entry - non-critical 3+ entries dropped L4
Removed deny entry - critical any of System / Runtime / Process / ProcessBuilder L5
Added allow entry - file-read java.io.File*, java.nio.file.Files/Path/Paths L4
Added allow entry - reflection java.lang.reflect.*, java.lang.invoke.*, java.lang.Class L4
Added allow entry - network java.net.http, Socket, URL, URLConnection, HttpURLConnection, javax.net.ssl, org.jsoup L4
Added allow entry - file-write java.io.FileWriter, FileOutputStream, RandomAccessFile, FileChannel L5
Added allow entry - critical System / Runtime / Process / ProcessBuilder L5
Any other class added non-critical allow L3

Practical interpretation:

Human-in-the-loop approval

The pane also sets the tool’s Human-in-the-loop approval mode - Required (ask on every call) or Disabled - no prompt. It defaults to Required above L0. An optional Approval prompt customizes the question, with {toolName} and {args} substituted at call time, and lowering the mode opens a Reduce human oversight? confirmation. This is the runtime gate that pauses a call until you approve it - see Human-in-the-Loop Approval.

Safety - defense in depth

The terminology matters: this is safety in the GraalVM sandbox sense - keeping a small JavaScript action from doing things its author did not intend - not security in the sense of authenticating outside callers. The two are layered but separate, and the code makes the same distinction (safety.fs, safety.parser.* for the sandbox surface; Spring Security on top for the endpoint).

The three layers:

  1. Java-level sandbox (always on) - what every tool runs inside, no matter who authored it. Deny-first class allowlist, network/file I/O blocked at the JVM (helpers are the only paths), statement-budget + wall-clock timeout, secret masking on console.log output. Not bypassable from JS. Configured by Default sandbox baseline above.
  2. Per-tool overrides (visible risk) - the Sandbox & Capabilities pane widens the sandbox in declared, badge-visible ways. Each widening surfaces as a Risk Level (L0-L5) before publish, so the gate is review rather than runtime. Layer 1 still holds: the deny-list and SSRF guard cannot be turned off here, only the allow-side and network mode can be widened.
  3. MCP endpoint security (Spring Security) - adversarial-threat layer in front of the MCP transport. Disabled by default for the local single-user case; enabled via Spring AI MCP Security for deployed scenarios.

The first two are about safety of execution. The third is about who can talk to the MCP server. Both matter; they fail to different threats.

For the system-level reference - three-layer diagram, policy resolution flow, per-execution enforcement points, threat-to-layer mapping, and known limitations - see AI Agent Tool Safety Architecture.

Connect to the Built-in MCP Server

Once Spring AI Playground is running, the built-in MCP server can be consumed directly by MCP-compatible clients.

Claude Code

Recent Claude Code versions support Streamable HTTP directly.

claude mcp add spring-ai-playground http://localhost:8282/mcp

Restart Claude Code if needed so the new server is picked up.

Cursor

Configure a Streamable HTTP server in Cursor with:

In practice, that means:

  1. open Cursor Settings
  2. navigate to Features > MCP
  3. add a new MCP server
  4. choose Streamable HTTP
  5. enter the name and URL above

Claude Desktop

If your Claude Desktop plan supports native remote connectors, you can add http://localhost:8282/mcp directly from the Settings UI.

For broader compatibility, one practical approach is to use mcp-remote:

{
  "mcpServers": {
    "spring-ai-playground": {
      "command": "npx",
      "args": ["-y", "mcp-remote", "http://localhost:8282/mcp"]
    }
  }
}

Restart Claude Desktop after saving the config.

This proxy-style setup is especially useful when direct remote configuration is unavailable or inconvenient, because it wraps the remote Streamable HTTP MCP server behind a local process contract that desktop clients already understand well.

Dynamic Tool Exposure

Tool Studio and the built-in MCP server are intentionally designed for a no-restart workflow:

When a tool is created or updated in Tool Studio, it is dynamically discovered and exposed by the default built-in MCP server. You can then inspect its schema and validate execution behavior from the MCP Server screen without restarting or redeploying the application.

Key Tool Studio Capabilities

In the UI these capabilities show up as the practical authoring workflow:

You can keep many tools in your workspace, expose only a controlled subset, validate the exact contract the model will see, and update the runtime without a restart cycle.

Low-code Tool Development Workflow

  1. Open Tool Studio.
  2. Define the tool name and description.
  3. Add structured parameters with test values.
  4. Add static variables if needed.
  5. Write the JavaScript action.
  6. Run Test Run and inspect the debug output.
  7. Publish with Test & Publish (or Test & Update if the tool was already published before).

Pre-built Example Tools

!!! abstract “Full inventory lives in Default Tools” Per-tool reference - name, one-line description, params, env-var deps - is on the five pages under Default Tools. This section describes the preset and curation shape - how the bundle is sliced into the Local-Passed (active) set at setup.

- :material-rocket-launch:{ .lg .middle } **[Examples](/spring-ai-playground/docs/features/default-tools/examples.html)** --- **9** · starter tools - fetch a web page, look up weather, search Google, call OpenAI, post to Slack. - :material-toolbox:{ .lg .middle } **[Utilities](/spring-ai-playground/docs/features/default-tools/utilities.html)** --- **26** · pure-compute - text, datetime, math, security, encoding, crypto, CSV. No I/O. - :material-folder-cog:{ .lg .middle } **[Filesystem](/spring-ai-playground/docs/features/default-tools/filesystem.html)** --- **11** · `safety.fs` pipeline - list-roots, read, list, grep, slice, sort, find, write - over readable roots and a writable working directory. - :material-web:{ .lg .middle } **[Global](/spring-ai-playground/docs/features/default-tools/global.html)** --- **22** · public APIs - GitHub, Wikipedia, weather, finance, geo, search. - :flag_kr:{ .lg .middle } **[Korea](/spring-ai-playground/docs/features/default-tools/korea.html)** --- **21** · Korean-domain services - Upbit, Bithumb, Naver, Kakao, KMA, KOFIC, KRX, MOLIT, MFDS.

The app ships with a bundled catalog of 88 default tools across six JSON source bundles. They are ready to call from chat the moment a model provider is connected, and they also serve as editable references when you start writing your own.

Not all of them are Local-Passed (active) by default. A preset decides the starting Local-Passed subset, and include / exclude rules layer per-tool tweaks on top. Each preset stands on its own - Dev Essentials, Korea Toolkit, and File Toolkit do not automatically inherit Starter 5 (only getCurrentTime and evalExpression carry through deliberately).

Preset Tools exposed Notes
Starter 5 (default) getCurrentTime, getWeather, searchWikipedia, extractPageContent, evalExpression No setup, no API keys - works on a fresh install
Dev Essentials getCurrentTime, evalExpression, uuid, hash, base64, jwtDecode, regexExtract Everyday local utilities
Korea Toolkit (free) getCurrentTime, evalExpression, getUpbitTicker, getBithumbTicker, searchKpopOnItunes, searchKBeautyProducts Free Korean services
File Toolkit getCurrentTime, evalExpression, listAllowedDirectories, readTextFile, listDir, grepFile, findFiles, sliceFile, sortFile, cutFileFields Filesystem read pipeline - reads anywhere under home, writes to the working directory; set TOOL_STUDIO_FS_BASE to relocate it (default ${user.home}/spring-ai-playground/workspace)
Everything All 88 default tools Heavy MCP catalog

Per-tool include / exclude rules layer on top: name-add → tag-add → category-add → name-remove → tag-remove → category-remove. These rules are configured at setup - the desktop launcher’s Default MCP Tools card (include-by-tag / -category / -name, exclude-by-tag / -name) or CLI / yaml; exclude.categories is data-supported but currently only reachable via CLI / yaml override.

Some default tools depend on environment-backed secrets - OPENAI_API_KEY, GOOGLE_API_KEY + GOOGLE_PSE_ID, SLACK_WEBHOOK_URL, the data.go.kr keychain, and the Korean provider keys - and stay inert until those are set. The consolidated list lives in Default Tools → Environment variables; per-page details are on each reference page. The File Toolkit preset additionally honours TOOL_STUDIO_FS_BASE (defaulting to ${user.home}/spring-ai-playground/workspace) for safety.fs. The desktop launcher’s environment-variable workflow exists exactly to make this configuration ergonomic.

Where preset choices live

The preset + rules shape decides which built-in tools are Local-Passed (active). It is chosen at setup - not from inside the running app’s MCP drawer:

  1. Default MCP Tools card inside the desktop launcher’s config editor - pick the preset on first launch and adjust it on any later configuration session. See Desktop App → Default MCP Tools Curation.
  2. CLI / yaml override - pin the preset and include/exclude rules at boot (below).

Both write the same default-tools-preference.json under the home dir (managed by the persistence layer, not a hand-edit target), which the app reads at startup to set the Local-Passed set. After startup you Local-Pass or unpublish individual built-in tools from the Tool Studio tool list (Publish / Draft), and choose which Local-Passed tools the MCP server exposes from the Built-in MCP Server Native Tools drawer.

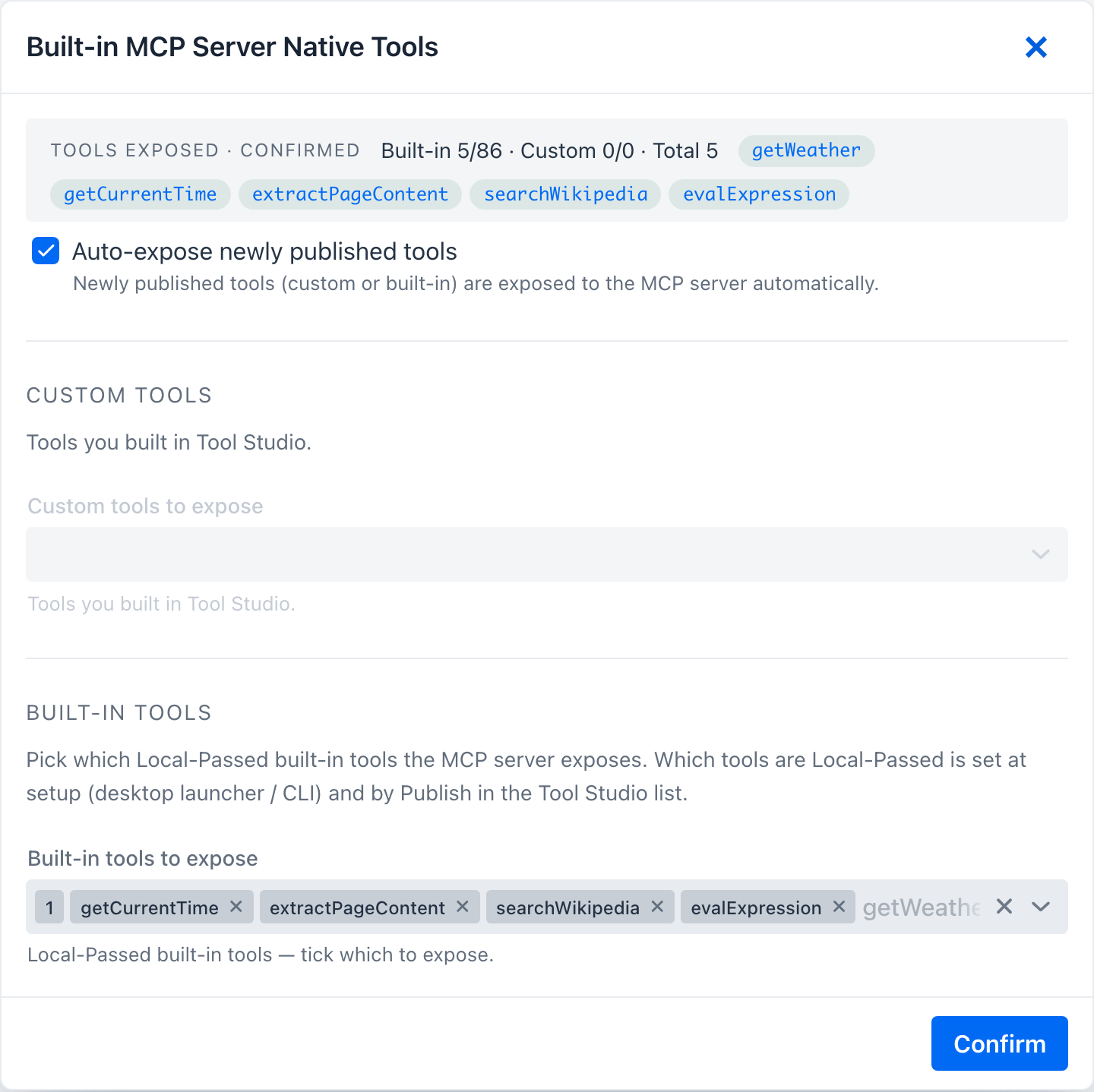

Built-in MCP Server Native Tools drawer - Local-Passed exposure selection Built-in MCP Server Native Tools drawer, top to bottom: Tools exposed confirmed-summary chips; Auto-expose newly published tools; Custom tools selector for authored tools; Built-in tools selector listing the Local-Passed built-in tools - tick which to expose. Confirm writes the exposure change and updates the live MCP server without a restart.

CLI / yaml override

You can pin the preset at boot time without touching the preference file:

./mvnw spring-boot:run -Dspring-boot.run.arguments="\
  --spring.ai.playground.tool-studio.default-tools.preset=dev-essentials \
  --spring.ai.playground.tool-studio.default-tools.include.tags=korea"

CLI / yaml properties take precedence at boot but are not persisted back to the preference file; clearing them on the next launch reverts to whatever the file says.

Migration note

If a defaultToolOverrides.json file from an earlier milestone (≤ M5) exists, the current build renames it to defaultToolOverrides.json.deprecated on startup once. The new file is default-tools-preference.json in the same tool/save/ directory.

Using Tools in Agentic Chat

Tool Studio tools can be used in Agentic Chat through MCP integration. With a tool-capable model and Manual built-in tool selection enabled, the model can call the tools exposed by the built-in server during agentic workflows.

Agentic Chat can also call tools exposed by external MCP servers that you explicitly connect and trust.
