Tutorial 10 - Proxy an MCP Server

Time 8 min · Difficulty ★★☆ · Surfaces MCP Server

!!! abstract “Goal” Re-publish the tools of the external MCP servers you’ve connected through the playground’s own built-in MCP server - the MCP Server Proxy. Expose a whole server, a curated subset, or a combination of several servers on one governed endpoint (/mcp). Every proxied tool is wrapped with a risk level, optional human approval (HITL), logging, and secret masking, and becomes callable from Agentic Chat and any external /mcp client.

!!! tip “No-credential examples - DeepWiki + MCP Everything” This walkthrough connects two Default MCP Servers from the Example category: DeepWiki (free, no-auth Streamable HTTP; three read tools - read_wiki_structure, read_wiki_contents, ask_question) and MCP Everything (the reference test server; stdio). Any active connection proxies the same way - these two just need no credentials.

How the proxy works

The built-in server (spring-ai-playground-built-in-mcp, Streamable HTTP at /mcp) is the single endpoint your agent - and any external MCP client - connects to. The proxy lets that one server front the tools of the external servers you’ve connected: it serves your Tool Studio tools plus the upstream tools you select, each wrapped and governed per tool. You never expose a raw upstream connection to a client; you expose a curated, risk-capped slice of it through your own server.

Step 1 - Connect the upstream server(s)

In MCP Server, open the sidebar’s Inactive MCP section and activate the servers you want to proxy - here DeepWiki and MCP Everything - each via Save & Connect. (For the manual / authenticated path, see Tutorial 2.) Confirm each server’s tools in the Inspector; every tool carries its own risk chip (DeepWiki’s read tools score L2 - Low).

Step 2 - Open the Composed Tools drawer

Click the gear icon at the top-right of the MCP Server Info header. The Built-in MCP Server Composed Tools drawer lists every active server.

Composed Tools drawer - DeepWiki and MCP-Everything each shown with a Server risk chip, the exposure-mode selector, a max-risk cap, and an HITL-all toggle { loading=lazy }

Step 3 - Set the proxy-wide options

The top of the drawer governs what the whole built-in server publishes:

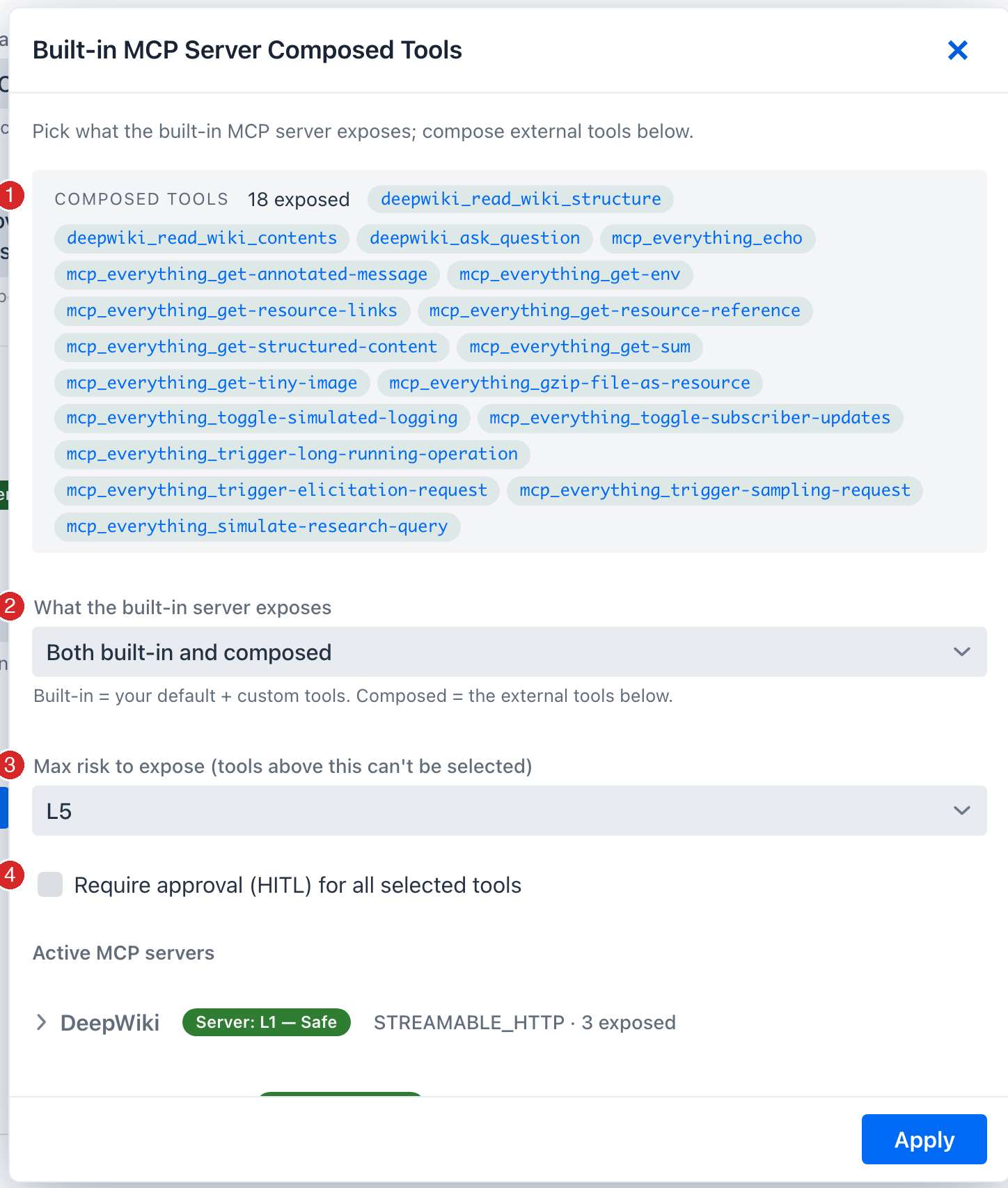

Composed Tools drawer controls, numbered: 1 the COMPOSED TOOLS summary chips, 2 the 'What the built-in server exposes' selector, 3 the Max risk to expose cap, 4 the Require approval HITL-for-all toggle { loading=lazy }

COMPOSED TOOLS - a live summary of every tool currently selected across all servers, by exposed alias. This is the merged set the built-in server will publish.
What the built-in server exposes - Both built-in and composed (default), Built-in tools only, or Composed tools only. “Built-in” = your Tool Studio default + custom tools; “Composed” = the external tools you pick below. Pick Composed tools only to turn the playground into a pure proxy for upstream servers.
Max risk to expose - a ceiling; any tool whose effective risk exceeds it is disabled in the list, so you can’t accidentally publish something over your bar.
Require approval (HITL) for all selected tools - gate every proxied tool at once (or do it per tool in Step 6).

Step 4 - Proxy a whole server

To front an entire server, expand its row and tick Select all (1). Every tool shows its own risk chip (2) and a per-tool HITL checkbox (3); any tool over the max-risk cap stays disabled.

DeepWiki expanded in the drawer, numbered: 1 the Select all checkbox (3/3 selected), 2 a per-tool L2 - Low risk chip, 3 a per-tool HITL checkbox { loading=lazy }

Step 5 - …or combine tools across several servers

You don’t have to take a whole server. Expand multiple servers and tick exactly the tools you want - the COMPOSED TOOLS summary at the top shows the merged set drawn from every server. Each exposed alias defaults to <server>_<tool> (normalized), e.g. deepwiki_read_wiki_structure from DeepWiki and mcp_everything_echo from MCP Everything, all served from your one endpoint.

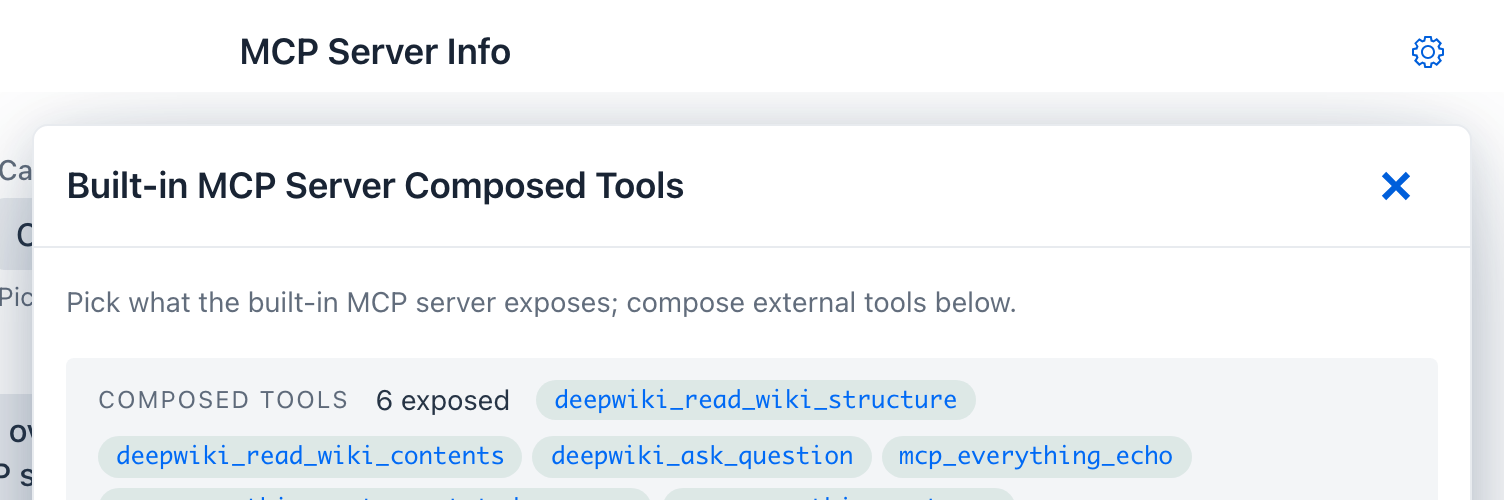

COMPOSED TOOLS summary showing six tools combined from two servers - three deepwiki_* and three mcp_everything_* aliases { loading=lazy }

Step 6 - (Optional) rename, re-describe, or gate per tool

Click a selected tool to edit its exposed alias or description (the input schema passes through unchanged), and tick its HITL box to require human approval before each call - which also lowers its effective risk by one band (shown as a HITL -1 badge).

Step 7 - Apply

Click Apply. The selected tools join the built-in server immediately - no restart. Select the built-in server in the sidebar and its Inspector now lists the proxied tools alongside your native ones. (They show L0 - Verified here because the built-in server bypasses the risk model for its own tools; the upstream’s real level still shows on its connection’s Inspector.)

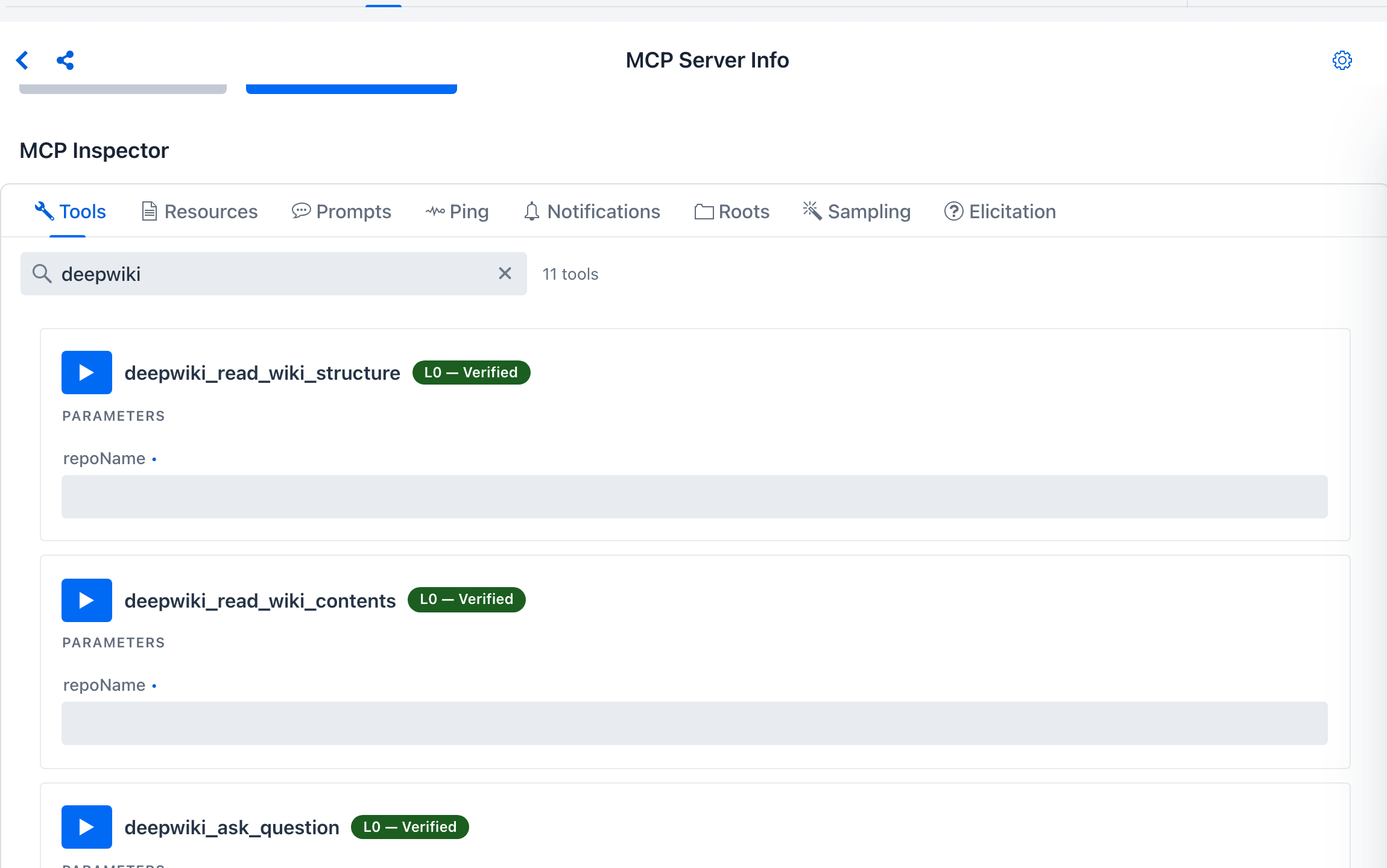

Built-in server Inspector filtered to 'deepwiki' - the three proxied deepwiki_* tools now served by the built-in server at L0 - Verified { loading=lazy }

Step 8 - Name the proxy endpoint (what clients see)

External /mcp clients see your built-in server’s name and description in their server list. These come from configuration, not the connection form - the built-in identity is sourced from your settings so it stays stable (and keeps matching the L0 - Verified bypass). The sidebar shows the current values:

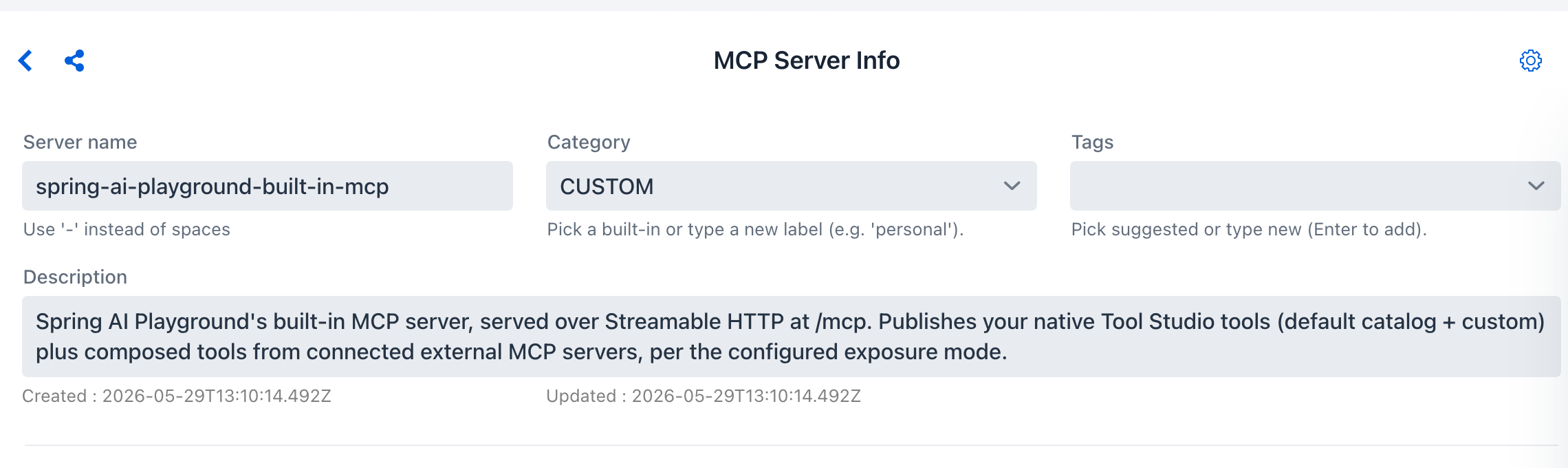

Built-in server identity on the MCP Server Info pane - the Server name 'spring-ai-playground-built-in-mcp' and the Description that external MCP clients see, both sourced from configuration { loading=lazy }

Set them in application.yaml (or via the matching env vars), alongside the exposure mode:

spring:
  ai:
    playground:
      built-in-mcp-server:
        name: my-team-tools                 # SPRING_AI_PLAYGROUND_MCP_NAME
        description: Curated tools for my team   # SPRING_AI_PLAYGROUND_MCP_DESCRIPTION
        exposure-mode: both                  # builtin-only | composed-only | both

Defaults are spring-ai-playground-built-in-mcp and a generated description. You can also pin the composed tool set declaratively - see Configuration → MCP built-in server & exposure and Proxy → Configure exposure via YAML.

Step 9 - Use it

Agentic Chat - the proxied tools are now selectable alongside your Tool Studio tools. Ask “What does the spring-ai-community/spring-ai-playground repo’s wiki cover?” and the model can call deepwiki_read_wiki_structure.
Any external MCP client pointed at the playground’s /mcp endpoint sees the proxied tools in tools/list under their exposed aliases - your built-in server has become a governed front for several upstreams at once.

!!! info “What the proxy guarantees” Each proxied tool is wrapped, not copied: it carries a composed risk level, emits mcp.tool.start / done / crash spans tagged with the upstream origin and risk, masks upstream secrets in errors, and (when marked HITL) persists the approval flag. Before it’s published it also passes a description poisoning scan, a fingerprint ledger (so a silently-redefined upstream tool is flagged for re-review), and shadowing rules. See MCP Server Safety → The safe-wrapping contract.

Where to go next

MCP Server Proxy - the full feature reference (caps, aliases, exposure modes, YAML config, external-client reach)
MCP Server Safety - how the composed L0-L5 risk, poisoning scan, ledger, and shadowing rules are computed
Tutorial 4 - Chat With Tools - drive a tool from a chat turn end-to-end
