Agentic Chat

Where: top navigation → Agentic Chat.

Agentic Chat is the unified runtime where Spring AI Playground combines documents, tools, models, and conversation state. It is also where everything you assemble elsewhere - system prompts, built-in and authored tools, proxied MCP servers, and indexed documents - comes together as the live context for a single conversation.

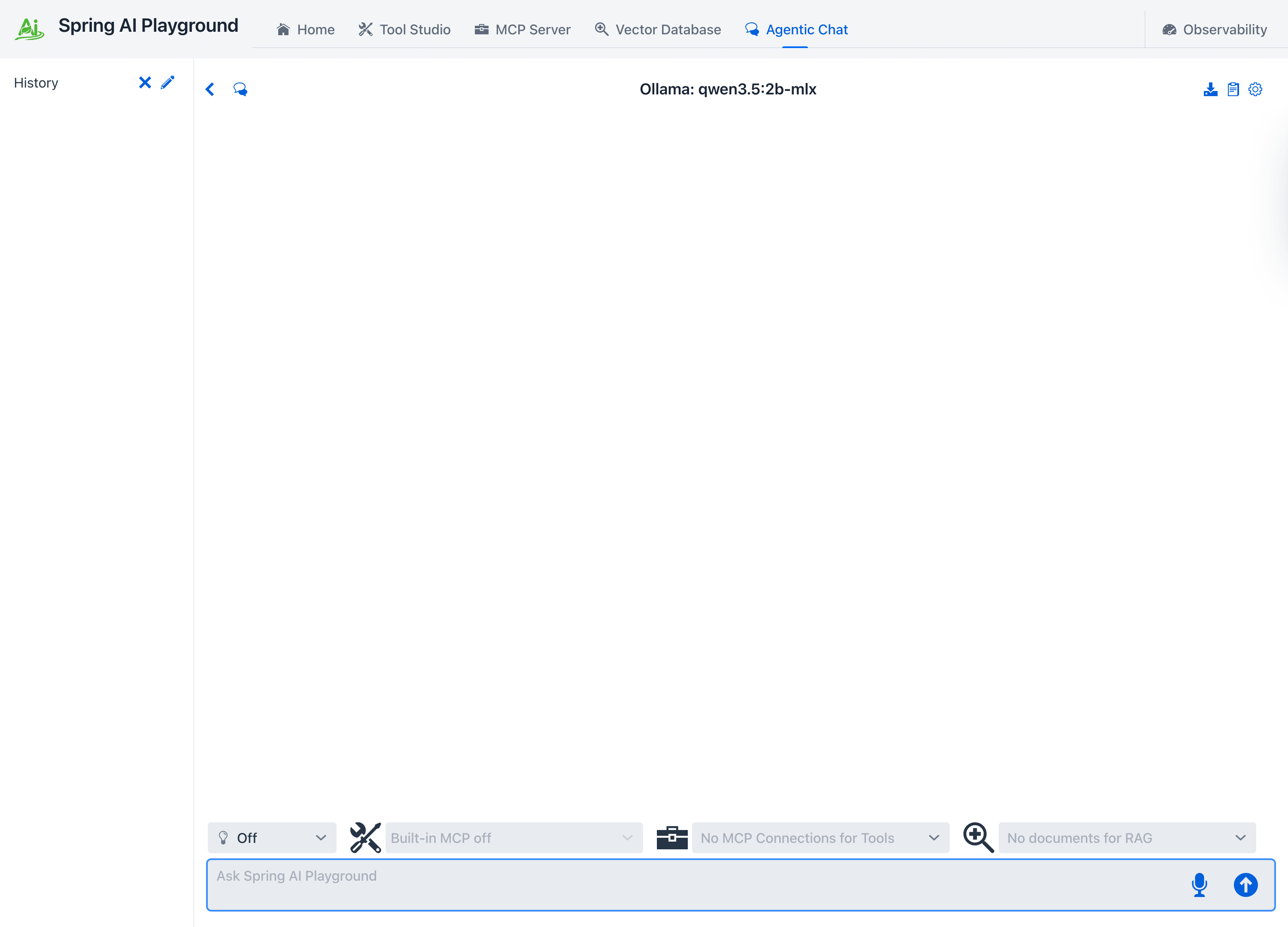

Agentic Chat workspace - the conversation area above the prompt input, with the reasoning, built-in tool, external MCP, and RAG document selectors on the selector row and the New Chat, Export, Prompt Library, and Settings actions in the header{ width=”1500” }

This unified interface lets you:

Key Features

This area is closely aligned with Spring AI’s workflow and agentic guidance. If you want the conceptual background behind these two modes, see Building Effective Agents. For how the Playground assembles the full model context - system prompt, retrieved documents, tools, memory, and options - see Context Engineering.

The chat workspace

The screen has three regions:

Composing a request

Reasoning effort

The lightbulb dropdown on the selector row sets how hard the model thinks on the next turn - Off, Low, Medium, or High. It is dynamic: change it between turns without starting a new chat.

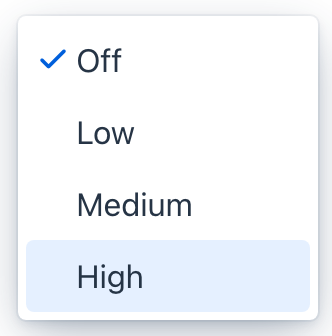

The reasoning effort dropdown open on the selector row, showing Off, Low, Medium, and High{ width=”166” }

The control is provider-aware and only appears for models that support it. The level maps to each provider’s own knobs - on OpenAI it becomes reasoning_effort; on Ollama it toggles thinking and its depth. Off sends no reasoning option at all, which is the safe default for non-reasoning models. See Context Engineering → Reasoning effort for the mapping.

Choosing tools and documents

The tools icon on the selector row opens the tool popover. It is the per-chat switch for what the agent may call, and it offers two mutually exclusive ways to decide:

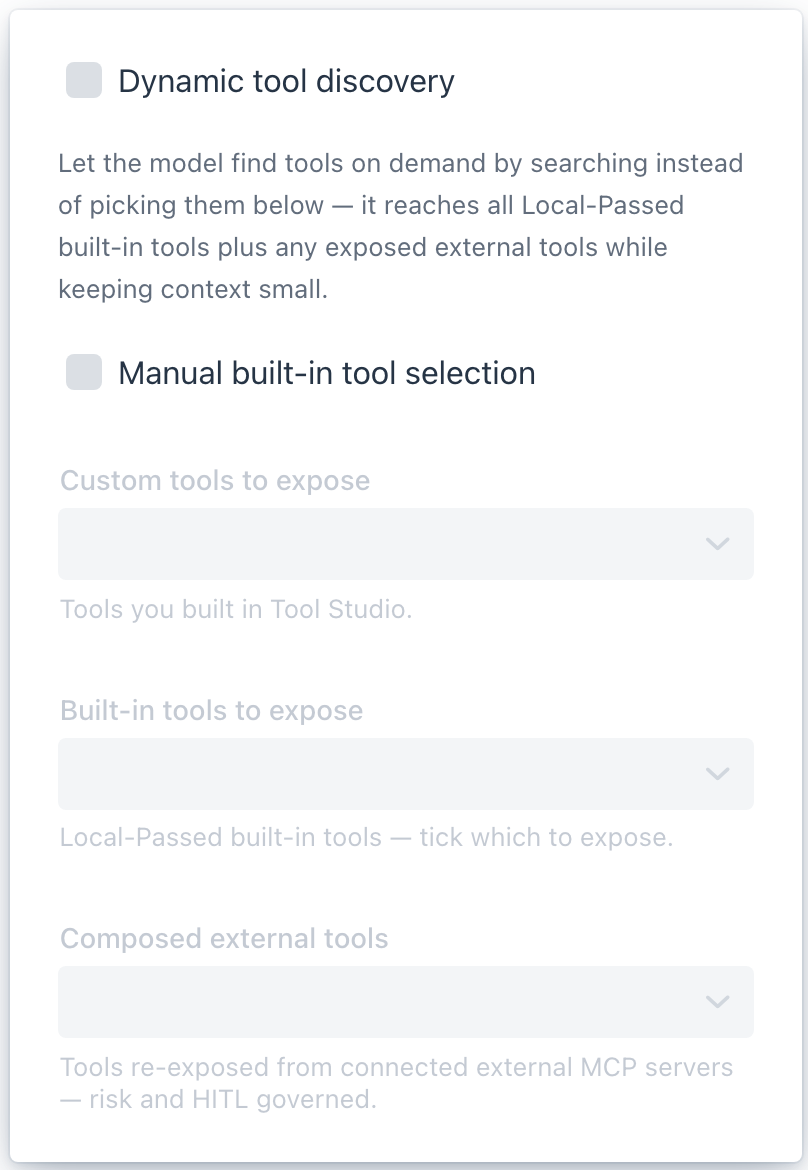

The tool selector popover - a Dynamic tool discovery checkbox on top, then a Manual built-in tool selection toggle with multi-select boxes for Custom tools, Built-in tools, and Composed external tools{ width=”404” }

Ticking one mode unticks the other. Beside the popover, the MCP servers selector picks which connected external servers feed the chat - it reads No MCP servers connected until you connect one, and Disabled in Dynamic mode while discovery handles tools - and the document selector enables Vector Database collections for RAG grounding. All of these selections are remembered per conversation.

Dynamic tool discovery { #dynamic-tool-discovery }

By default a chat sends the model the full schema of every tool you expose - fine for a handful, but a broad agent setup can push tens of thousands of tokens of definitions into every turn. Dynamic tool discovery removes that cost: the chat hands the model a single toolSearchTool, and the model searches the catalog on demand instead of receiving every definition up front. Tick it at the top of the tool popover (the exposed-tools box then reads Dynamic — searching all tools); it stays disabled until the searchable pool clears the tool-search.min-tools floor (default 10), so add more in Tool Studio if it is greyed out.

It is also how the built-in Self-equipping agent preset works. For the full picture - why it matters for agents, the 34-64% token-savings experiment behind it, how it lets a small local model drive a large toolbox, and the configuration - see Dynamic tool discovery.

Multimodal vision input

The picture icon by the prompt box attaches images (up to five per message) - or drop a file onto the prompt, or paste a screenshot. Attached images show as removable chips above the prompt, are resized and EXIF-tagged in the browser, stored content-addressed under the playground home, and sent to the model as native multimodal input. A capability check warns when the selected model cannot actually see (including the mlx false-positive case on Apple Silicon). The full pipeline - storage, vision checks, error handling, and the describeImage re-reference tool - is on the Multimodal Vision Input page.

Voice input

The microphone icon by the prompt box dictates your message - click to start, click again to stop. Transcribed text streams into the input as you speak and keeps anything you already typed. The backend is picked automatically by where the app runs:

While recording, the mic doubles as a stop button with a countdown wedge that fills as silence builds up - it auto-stops after a few seconds of quiet, or click to stop immediately. It is the input-side complement to Read aloud.

System prompts and presets

The system prompt frames every turn. You can type one in the settings drawer, or pull a ready-made preset or a variable-driven template from the Prompt Library (clipboard icon in the header). The two are related but distinct - a preset is a complete prompt you apply as-is; a template has `` you fill in first - and each has its own page below.

The chat settings drawer

The Settings cog opens the chat model drawer - the static configuration for the conversation. Editing it and pressing Apply & New Chat starts a fresh conversation with the new settings.

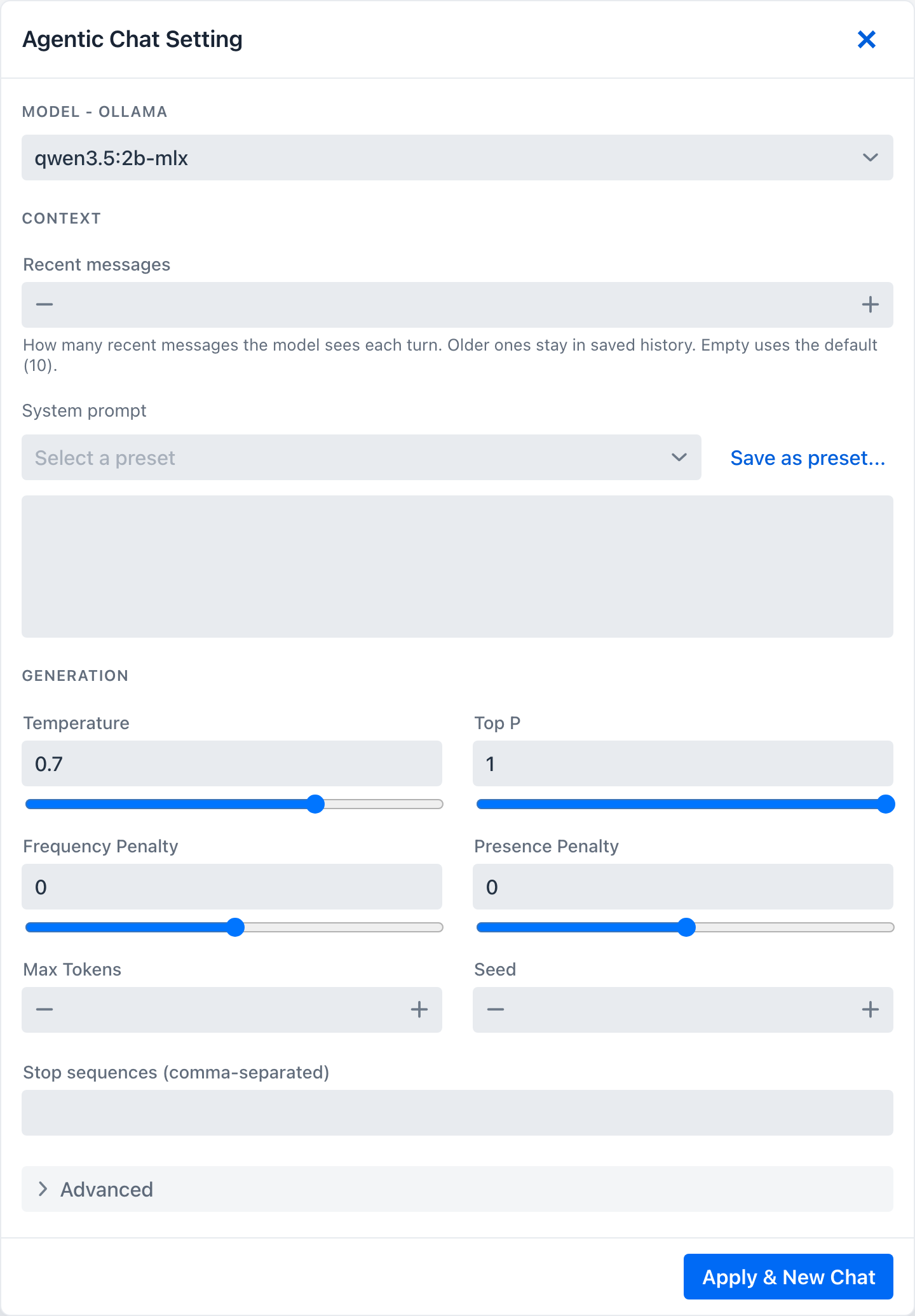

The chat settings drawer - sections for Model, Context, Generation, and Advanced details, with the Apply and New Chat button{ width=”732” }

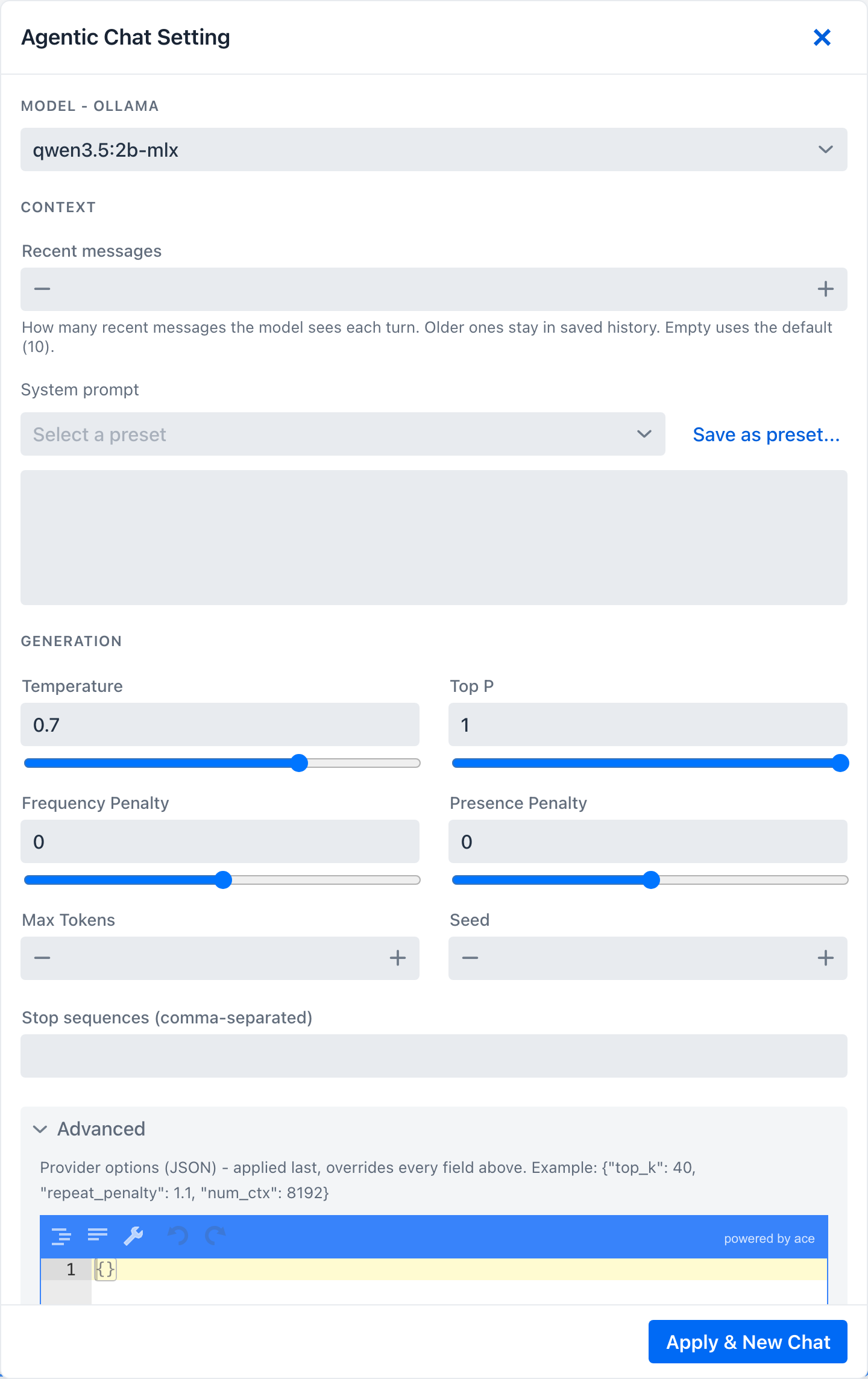

The Advanced details section expanded, showing the provider-options JSON editor{ width=”732” }

The drawer is provider-aware: the option labels, the stop-sequence cap, and the JSON placeholder change with the active provider. The full property mapping lives in Context Engineering → Generation options. Out-of-range entries (a Recent-messages or Max-Tokens below 1, or more stop sequences than the provider allows) are flagged inline; Apply & New Chat is blocked until you fix them, and the drawer stays open with the offending field highlighted.

Switching models and the download gate

The download gate applies only when the active provider is Ollama (local models you pull). With Ollama active, the model dropdown marks any model that is not yet pulled with a download indicator.

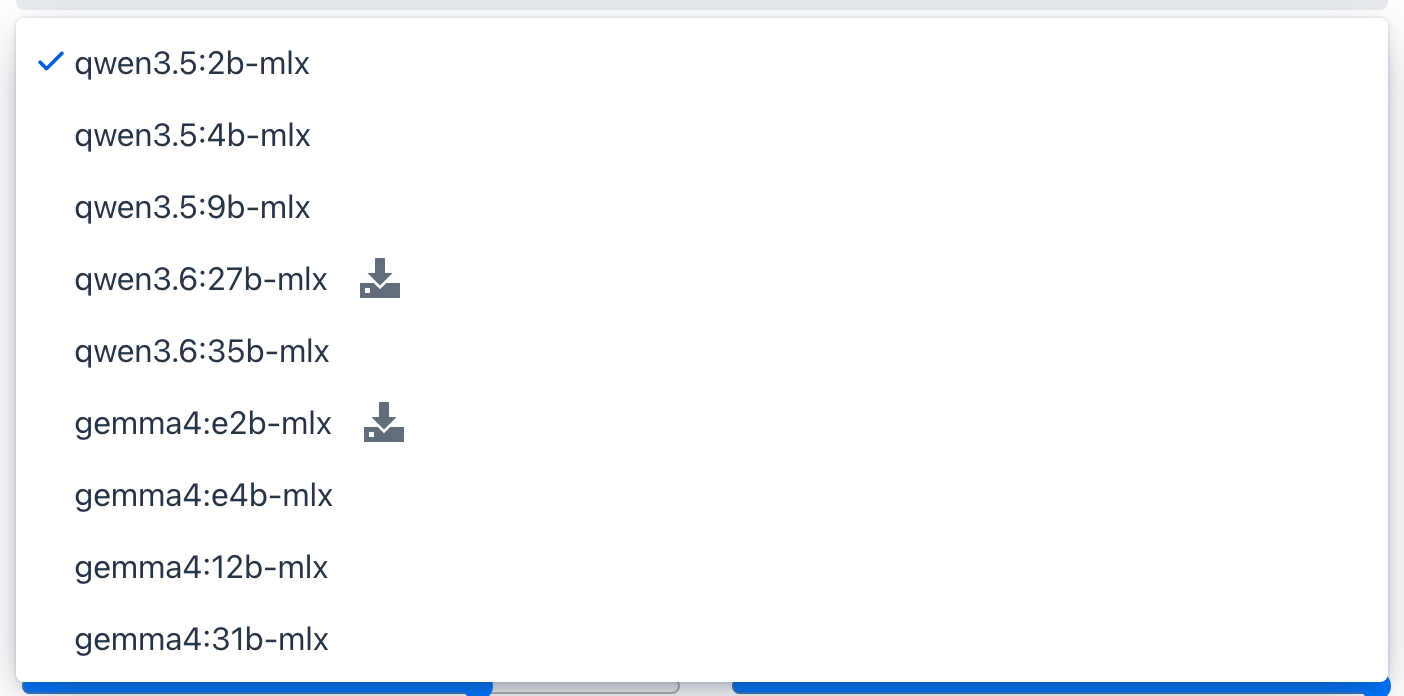

The model dropdown with a download indicator on models that are not yet downloaded locally{ width=”702” }

If you apply an Ollama model that is not installed, the chat does not start on a missing model. A gate dialog appears first; choosing Download pulls it with a live progress bar and a cancel option, and when the download finishes the chat starts on the new model.

For a remote provider such as OpenAI there is nothing to download, so the download indicator, helper text, and gate dialog do not appear.

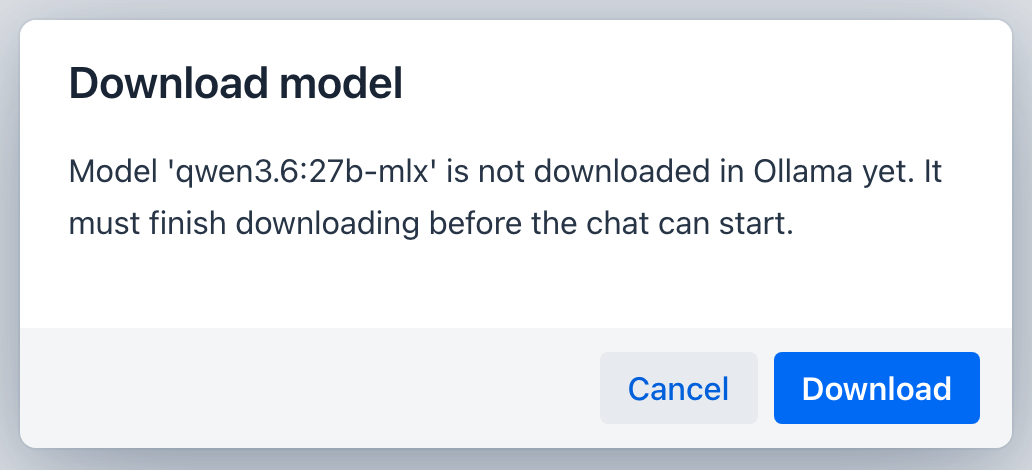

The model download gate dialog - a message that the model is not downloaded in Ollama yet, with Cancel and Download buttons{ width=”516” }

Provider lock

Each conversation is stamped with the provider that created it. If you open a saved conversation while the app is running a different provider, the conversation is shown read-only with a banner, so its history stays intact but you cannot append turns that the current provider could not have produced.

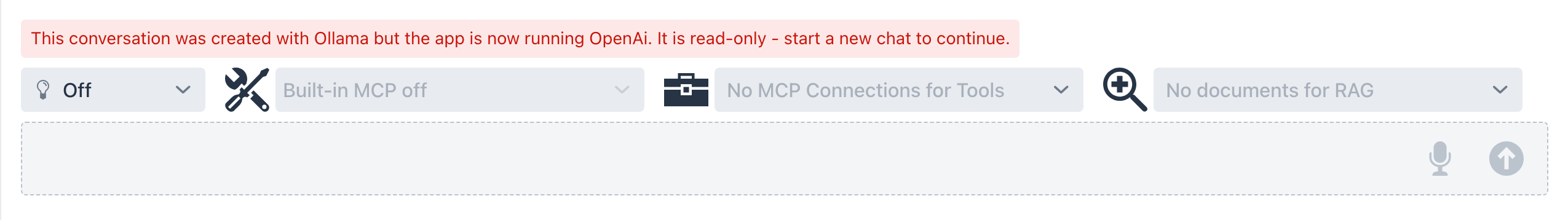

A conversation opened under a different provider - the input is disabled and a banner reads that the conversation was created with Ollama but the app is now running OpenAi{ width=”1275” }

Reading a response

Markdown, code, math, and diagrams

Assistant turns render as full Markdown. Code blocks are syntax-highlighted (highlight.js) with a language label and a one-click copy button; math renders with KaTeX both inline ($...$) and as display blocks ($$...$$); and fenced ` ```mermaid ` blocks render as diagrams. Links open in a new tab. Rendering runs once the turn finishes streaming.

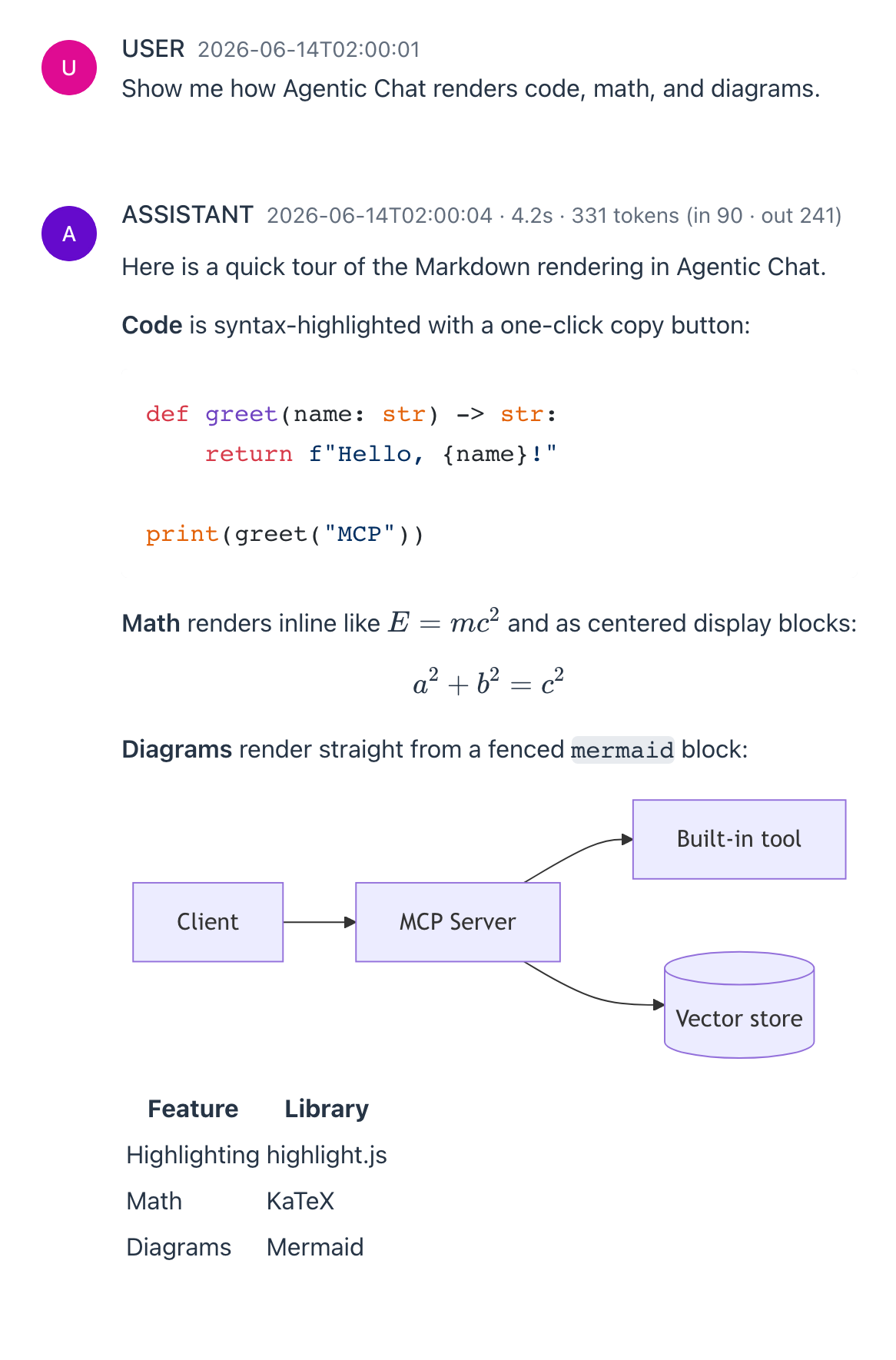

A rendered assistant turn - a highlighted Python code block with a copy button, inline and display math, a Mermaid flow diagram, and a small table{ width=”583” }

Action cards

Some built-in tools render an interactive action card instead of plain text - a real-world action to confirm, a chart, a map, a diagram, or a structured view of data - rather than a wall of prose. Each card is emitted by a specific tool, and they fall into a few groups:

Real-world actions (review-then-act). sendEmail produces an Email draft card; addToCalendar produces a Calendar event card. Each shows the fields the model filled in plus a button to act on the draft - the email card a single Send email button, the calendar card an Add to calendar dropdown:

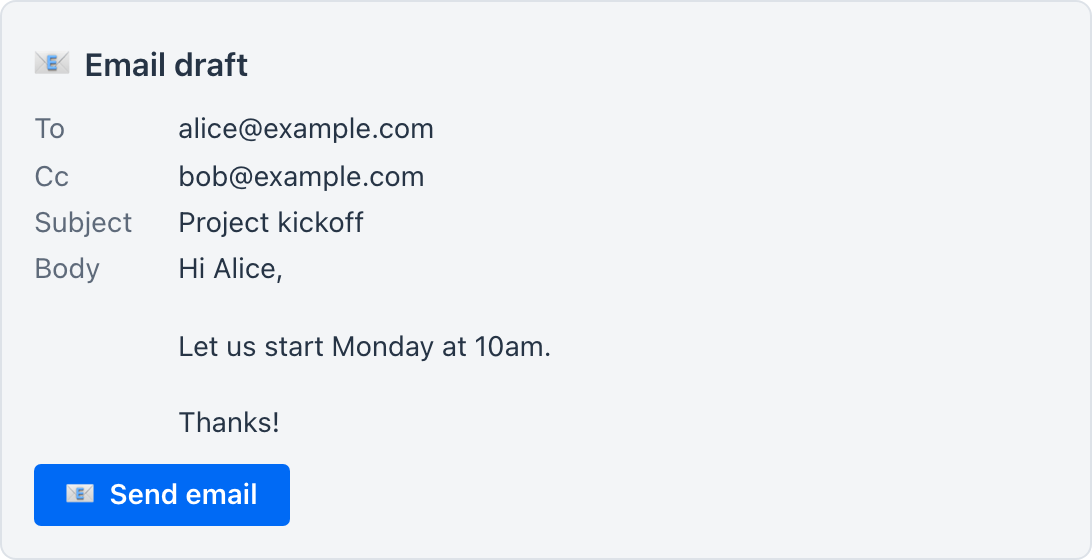

An Email draft action card - To, Cc, Subject and Body fields with a blue Send email button{ width=”546” }

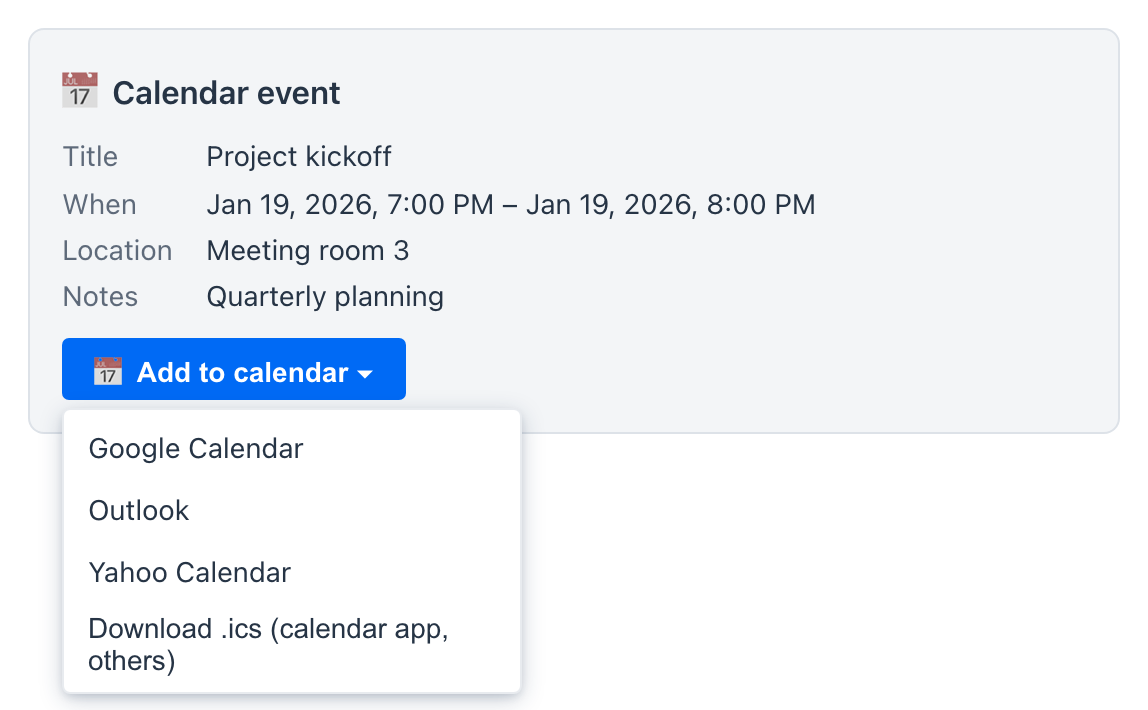

A Calendar event action card - Title, When, Location and Notes fields with a blue Add to calendar dropdown offering Google Calendar, Outlook, Yahoo, and .ics{ width=”546” }

These two follow a review-then-send rule: the model only drafts, it never sends. Send email opens a prefilled mailto: link in your own mail app; Add to calendar opens a menu to add the event to Google Calendar, Outlook, or Yahoo Calendar, or to get a standard .ics file - in the desktop app the .ics opens directly in your OS calendar app, in a browser it downloads for you to import. You stay in the loop for the outward action - a sibling of the human-in-the-loop approval gate.

Charts and maps. renderChart draws a chart whose chartType is one of bar, line, area, pie, radar, scatter, or gauge. For richer financial and structural views there are dedicated ECharts cards: renderCandlestick (OHLC candlesticks), renderHeatmap (a 2D matrix heatmap), renderSankey (a flow / Sankey diagram), renderFunnel (a funnel), renderTreemap (a treemap), renderGraph (a force-directed relationship graph), and renderWindRose (a polar wind rose). For geographic data, plotPointsOnMap drops several places onto one multi-point Leaflet map (the pointmap card) with a Light / Dark toggle, renderChoropleth shades the regions of a supplied GeoJSON by value, and renderGeoHeat paints a density heatmap of lat/lng points over a basemap. The chart and map cards carry Copy and PNG export buttons in the card header, so any figure can be lifted out as data or an image.

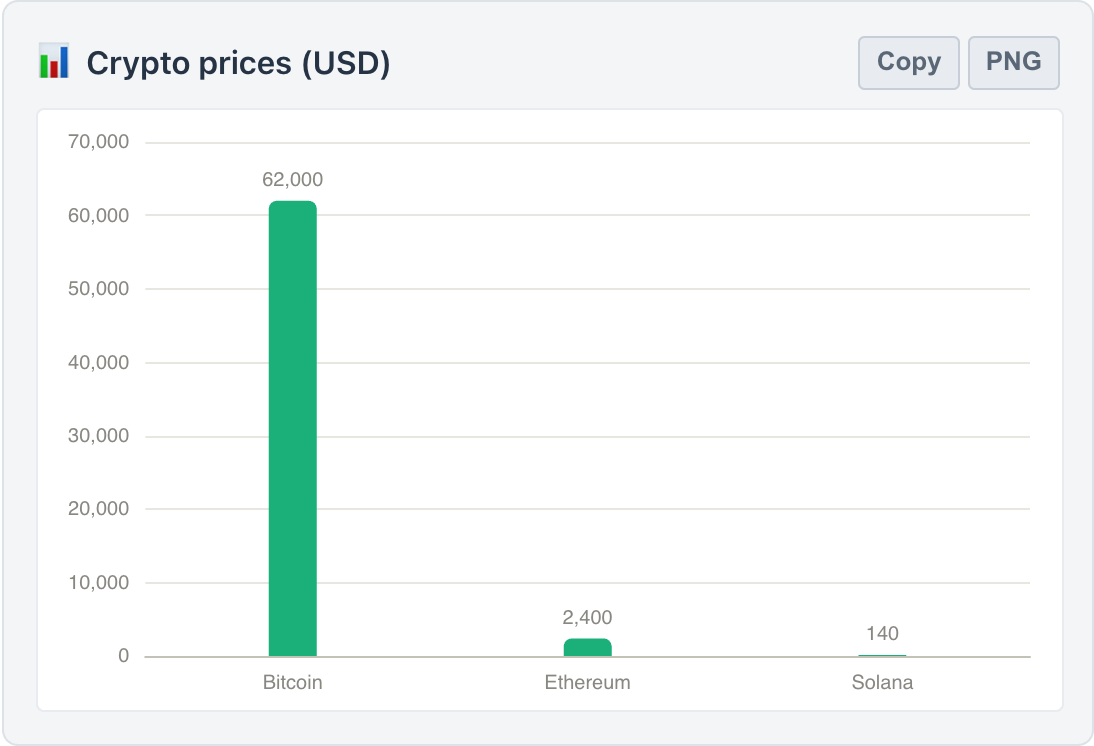

A renderChart bar card with Copy and PNG export buttons in the header{ width=”620” } A plotPointsOnMap multi-point Leaflet map with a Light/Dark toggle{ width=”620” }

Diagrams and images. renderDiagram renders a Mermaid diagram (flowchart, sequence, gantt) for a process or relationship, and showImage embeds an image from a direct URL.

Diffs. renderDiff shows a side-by-side text or file diff - deletions in red, additions in green - and surfaces a “completely different” banner when the two sides share almost nothing.

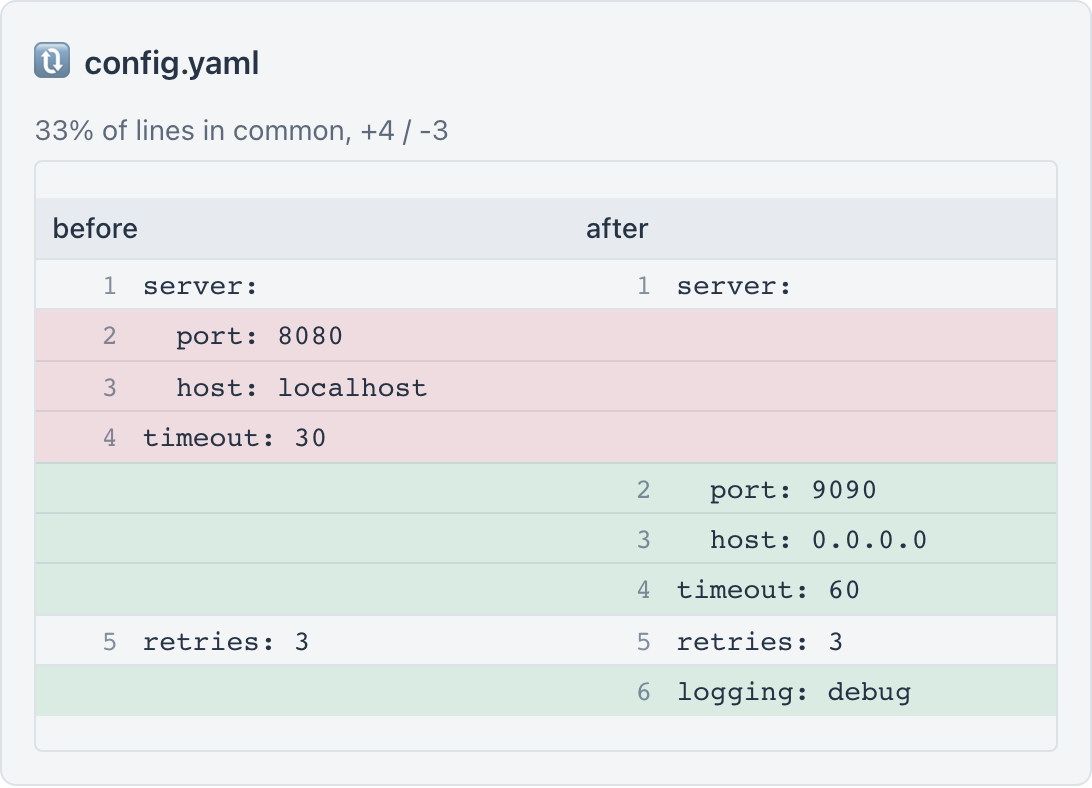

A renderDiff side-by-side card with red deletions and green additions{ width=”620” }

Structured data views. renderTable builds a sortable, searchable table; renderStatCards lays out a row of KPI tiles for headline numbers; renderComparison puts two or more entities side by side; and renderTimeline lays out a vertical list of dated events.

Mechanically, any tool - including one you author in Tool Studio - whose output carries a fenced saip-action block is rendered as a card; if it emits the saip-action-return-direct variant it is also treated as the final step of the request, so the turn ends without a follow-up model reply.

The showLocation card is display-only - it embeds a keyless map of a single place plus an Open in Google Maps link and sends nothing:

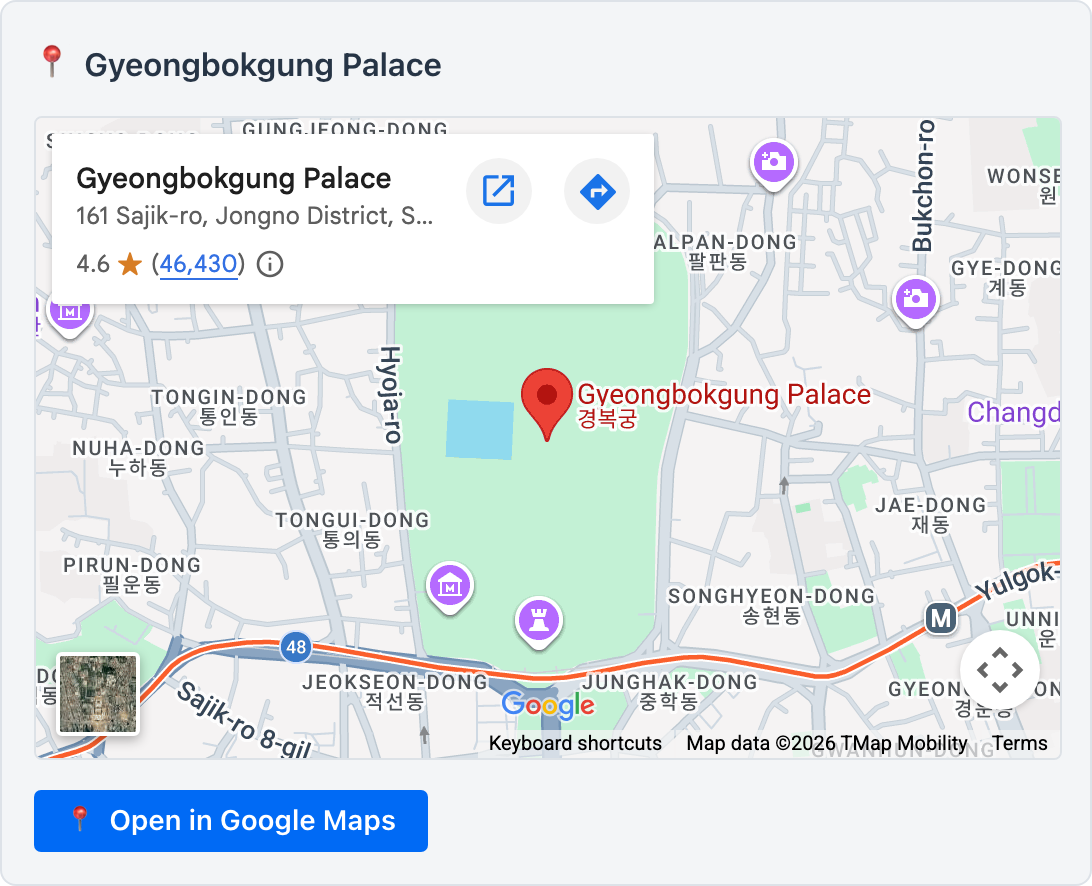

A Location action card embedding an interactive map of a place, with an Open in Google Maps link{ width=”546” }

Clickable file paths

On the desktop app, a backtick-wrapped absolute path in a reply becomes clickable - click it to reveal that file or folder in your OS file browser:

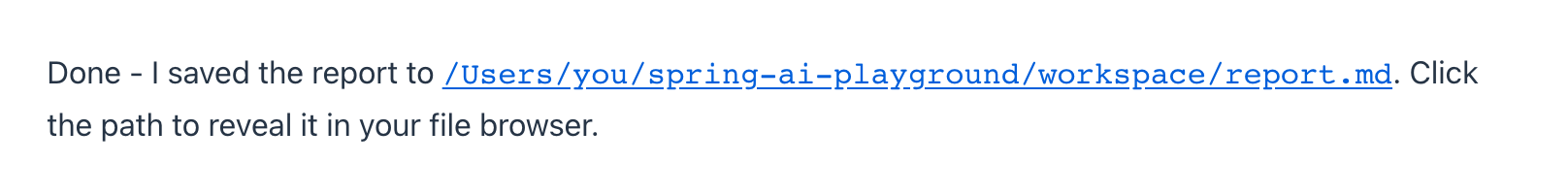

A chat reply with an absolute file path rendered as a clickable link{ width=”808” }

It is a convenience for the filesystem tools, not a capability the model can trigger - only your click does anything. It is scoped server-side to the same readable roots (your home directory by default), and it only ever reveals a path, never opens or runs a file. In a plain browser, headless, or Docker run the path is just text.

Message actions

Hovering a turn reveals its action bar - six controls left to right:

The hover action bar on an assistant message - Collapse, Copy, Show raw, Read aloud, Quote in prompt, and Export{ width=”463” }

Timing and token metrics

Every assistant turn carries its own metrics in the header line - the time, how long the turn took, and the token counts, for example 4.2s · 331 tokens (in 90 · out 241). When a turn reasons or calls tools, the tokens spent in those stages are attributed to their respective panels.

Reasoning and tool panels

When a turn thinks, calls tools, or retrieves documents, those stages appear as collapsible panels above the answer, each summarizing its duration and token cost:

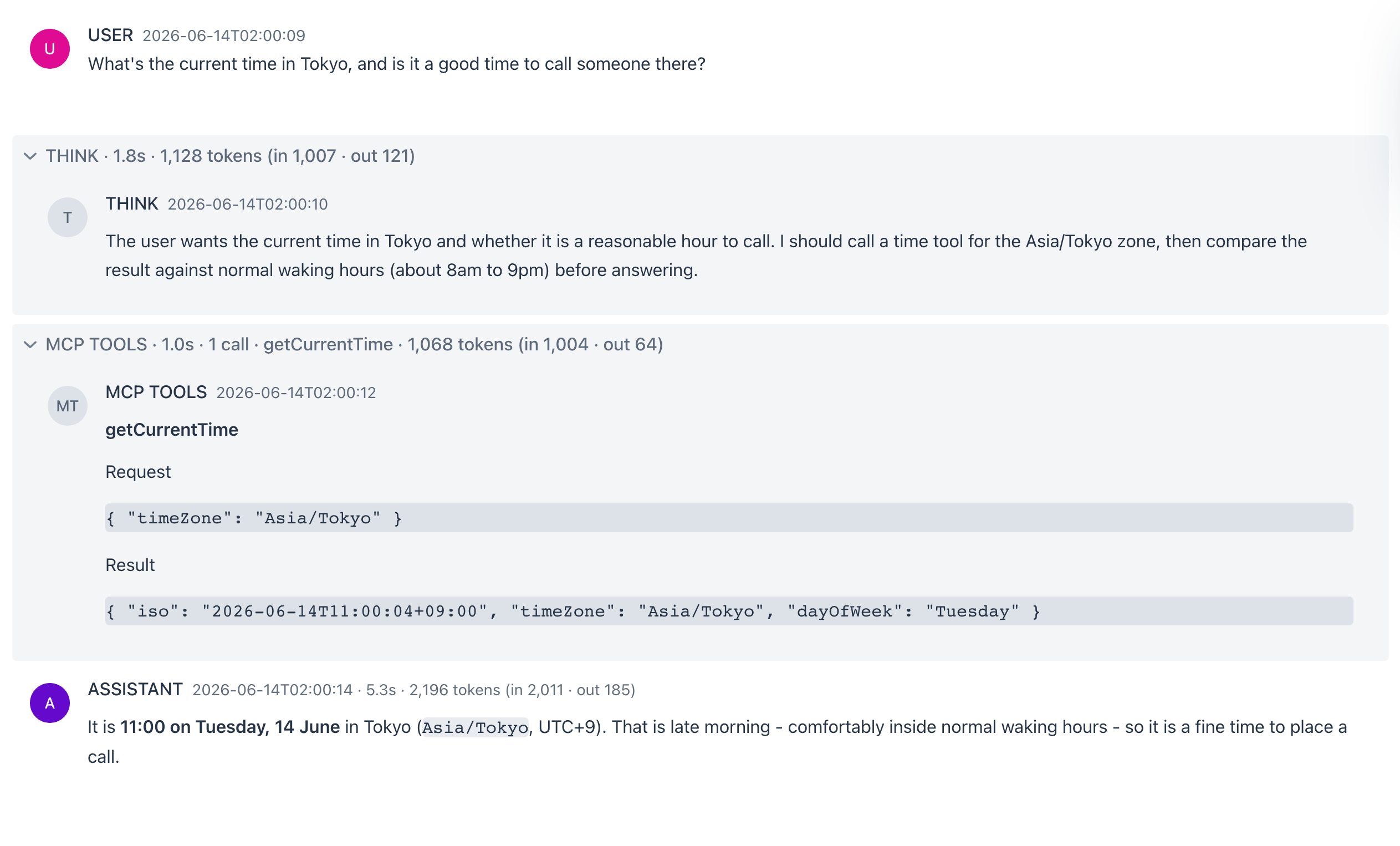

An agentic turn with an expanded THINK panel showing the model's reasoning and an expanded MCP TOOLS panel showing a getCurrentTime call with its request and result, above the final answer{ width=”1263” }

The panels collapse once a stage completes so the answer stays front and center; click any panel to reopen it. This is the same visibility the Observability dashboards capture after the fact.

Exporting a conversation

The Export conversation action in the header (and the per-message Export) writes the chat out as Markdown (.md), Plain text (.txt), JSON (.json), or a PDF (print).

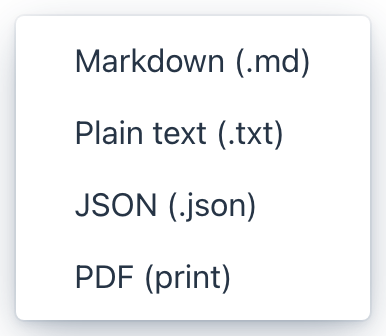

The Export menu listing Markdown, Plain text, JSON, and PDF{ width=”193” }

Two Integrated Paradigms

1. RAG: Knowledge via Chain Workflow

When documents are selected, Agentic Chat follows a deterministic retrieval pattern:

2. MCP: Actions via Agentic Reasoning

When MCP connections are enabled, Agentic Chat can behave like an agent:

When a tool requires approval, Agentic Chat pauses and asks you to approve or decline the call before it runs - the on-device half of Human-in-the-Loop Approval. Declining tells the model the call was not run, so it won’t silently retry.

The loop itself is governed by the agent loop: one message may run only a bounded number of tool rounds before the model is told to wrap up, repeated identical calls are short-circuited, and a cancelled upload or image request is not re-asked within the same turn - so a small local model cannot spin on the same dialog. The bounds are configurable.

Workflow Integration

The intended end-to-end flow is:

  1. prepare tools in Tool Studio or connect them in MCP Server
  2. prepare knowledge in Vector Database
  3. enable the relevant documents and MCP connections in Agentic Chat
  4. send a request and observe how retrieval and tool use combine

This is the place where the rest of the product becomes visible as one coherent system rather than separate screens. The outputs of Tool Studio, MCP Server, and Vector Database all converge here.

Requirements for Agentic Reasoning

Basic chat can work with any supported provider. Tool-enabled agentic behavior works best with models that support function calling and stronger reasoning.

For Ollama-based flows:

The default playground.chat.models list features qwen3.5:4b (default, the smallest vision-capable build) plus qwen3.5:2b / qwen3.5:9b, qwen3.6:27b / qwen3.6:35b for stronger tool-oriented reasoning, the gemma4 family (e2b / e4b / 12b / 31b), and gpt-oss:20b / deepseek-r1:8b as alternatives. See Picking a Model in the Tutorials for the tradeoffs.

Agentic Chat Architecture Overview

The diagram below is included as a conceptual reference to the related agentic systems material in the Spring AI docs.

It is included here to explain how the Playground’s Agentic Chat maps onto the broader Spring AI mental model. In this project, the diagram is not describing a separate product feature hidden behind the UI. It is a conceptual reference for understanding how the Playground combines model reasoning, retrieval, tool execution, and memory in one chat runtime. For the concrete build-up of that context in this project - system prompt, presets and templates, RAG, tools, memory, and per-request options - see Context Engineering.

Spring AI Agentic System Structure

If you want the fuller conceptual background, start with Building Effective Agents. That reference explains the workflow-versus-agent distinction that this Playground makes concrete through Tool Studio, MCP Server, Vector Database, and Agentic Chat.

This Chat experience facilitates exploration of Spring AI’s workflow and agentic paradigms, empowering developers to build AI systems that combine chain-based RAG workflows with agentic, tool-augmented reasoning. In practice, it follows Spring AI’s Agentic Systems architecture, where grounded retrieval and dynamic tool execution coexist in one context-aware chat runtime.

Component Type Description Configuration Location Key Benefits Model Requirements
LLM Core Model Executes chain-based workflows and performs agentic reasoning for tool usage within a unified chat runtime. Agentic Chat Central reasoning and response generation; supports both deterministic workflows and agentic patterns. Chat models; tool-aware and reasoning-capable models recommended.
Retrieval (RAG) Chain Workflow Deterministic retrieval and prompt augmentation using vector search over selected documents. Vector Database Predictable, controllable knowledge grounding; tunable retrieval parameters such as Top-K and thresholds. Standard chat plus embedding models.
Tools (MCP) Agentic Execution Dynamic tool selection and invocation via MCP, driven by LLM reasoning and tool schemas. Tool Studio, MCP Server Enables external actions, multi-step reasoning, and adaptive behavior. Tool-enabled models with function calling and reasoning support.
Memory Shared Agentic State The full conversation is kept locally; each turn the model sees a configurable trailing window, supplied through MessageChatMemoryAdvisor over an LlmWindowChatMemory decorator. Agentic Chat drawer (per-chat Recent messages) + spring.ai.playground.chat.memory-max-messages (default 10); history-max-messages (2000) caps the local store Coherent multi-turn dialogue without inflating every request; the recent-context window is tunable per conversation. Models benefit from a longer window when the task needs more history.

By leveraging these elements, Agentic Chat goes beyond basic Q&A and becomes a practical environment for building effective, modular AI applications that combine workflow predictability with agentic autonomy.

What the Chat can reach

Agentic Chat is a consumer of three inventories curated elsewhere in the Playground. Use these references to know what’s available before composing a chat session:

→ Try it: Tutorials - end-to-end flows that combine Tool Studio, MCP Inspector, Vector Database, and Agentic Chat.
